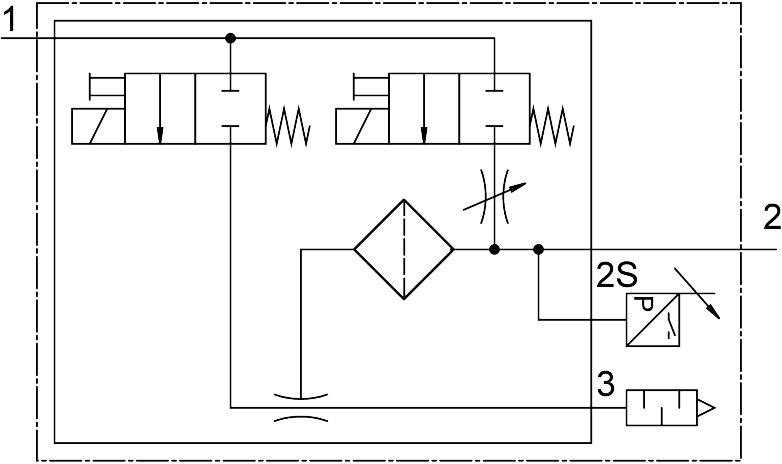

Reference imageConfirm configuration by manufacturer part number.
Festo
8069567
Vacuum generator OVEL-5-H-10-PQ-VQ4-UA-C-A-B2V-H3
The Festo 8069567 is an industrial component featuring a T-shape structural design with a 10 mm width dimension and a 0.45 mm nominal width Laval nozzle. This unit delivers high vacuum and standard ejector characteristics with a max vacuum of 89%, a max suction rate of 4 l/min, and an operating pressure range of 0.2 MPa to 0.7 MPa. Integrated functions include an electric ejector pulse, flow control valve, pressure transmitter, electric on-off valve, 40 µm filter, and an open muffler construction type with piezoresistive pressure sensor measurement. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8069567
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8069567.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.45 mm
- Width dimension
- 10 mm
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
- High vacuum | Standard
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Ejector pulse, electric | Flow control valve | Pressure transmitter | Electric on-off valve | Filter | Muffler open
- Structural design
- T-shape
- Valve function
- Closed
- Method of measurement
- Piezoresistive pressure sensor
- Operating pressure for max. suction rate
- 0.3 MPa | 3 bar | 43.5 psi
- Operating pressure
- 0.2 MPa...0.7 MPa | 2 bar...7 bar | 29 psi...101.5 psi
- Operating pressure for max. vacuum
- 0.42 MPa | 4.2 bar | 60.9 psi
- Max. vacuum
- 89 %
- Nominal operating pressure
- 0.4 MPa | 4 bar | 58 psi
- Max. suction rate with respect to atmosphere
- 4 l/min
- Air supply time at nominal operating pressure with ejector pulse
- 2 s
- Analog output
- 0 - 10 V
- DC operating voltage range
- 21.6 V...26.4 V
- Duty cycle
- 100%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8069567. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
