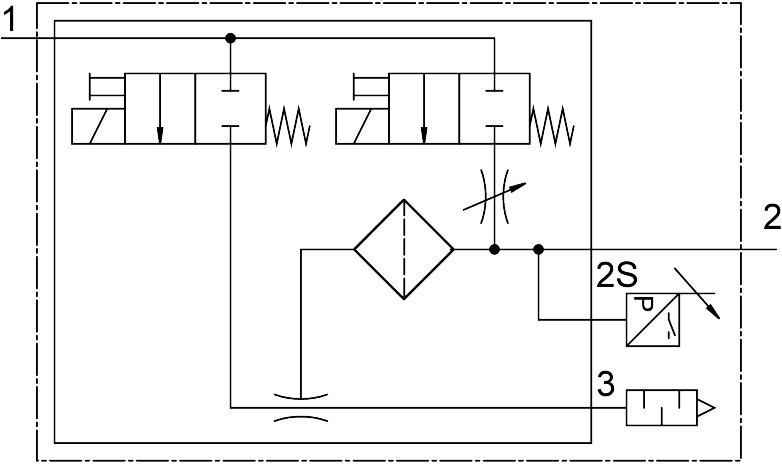

Reference imageConfirm configuration by manufacturer part number.
Festo
8069570
Vacuum generator OVEL-5-H-10-PQ-VQ4-UA-C-A-B2PNLK-H3
The Festo part number 8069570 is a T-shape industrial component featuring a 0.45 mm nominal width Laval nozzle, a 10 mm width dimension, an open muffler construction type, and any mounting position. It delivers high vacuum and standard ejector characteristics with a max vacuum of 89 percent at an operating pressure of 0.42 MPa, supported by integrated functions including an electric ejector pulse, flow control valve, pressure sensor, electric on-off valve, filter, and open muffler. Featuring a piezoresistive pressure sensor with a 2-digit LED display, non-detenting manual override, and a 40 µm filtration grade, this unit operates within a 0.2 MPa to 0.7 MPa range and offers programmable switching functions with IO-Link, teach-in, and display settings. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8069570
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8069570.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.45 mm
- Width dimension
- 10 mm
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
- High vacuum | Standard
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Ejector pulse, electric | Flow control valve | Pressure sensor | Electric on-off valve | Filter | Muffler open
- Structural design
- T-shape
- Switching element function
- N/C contact/N/O contact, switchable
- Switching function
- Freely programmable
- Valve function
- Closed
- Method of measurement
- Piezoresistive pressure sensor with display
- Display type
- LED indicator | 2-digit
- Setting options
- IO-Link® | Teach-in | Via display and keys
- Operating pressure for max. suction rate
- 0.3 MPa | 3 bar | 43.5 psi
- Operating pressure
- 0.2 MPa...0.7 MPa | 2 bar...7 bar | 29 psi...101.5 psi
- Operating pressure for max. vacuum
- 0.42 MPa | 4.2 bar | 60.9 psi
- Max. vacuum
- 89 %
- Nominal operating pressure
- 0.4 MPa | 4 bar
