Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

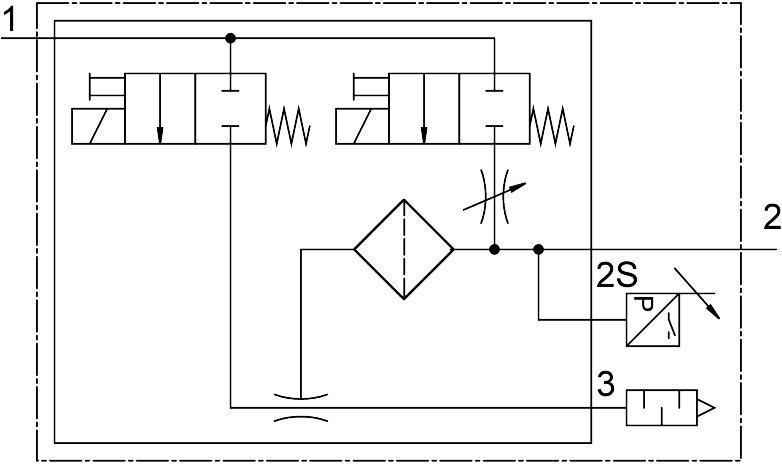

Reference imageConfirm configuration by manufacturer part number.
Festo
8069572
Vacuum generator OVEL-10-H-15-PQ-VQ6-UA-C-A-B2PNLK-H3
The Festo 8069572 is a T-shaped industrial component featuring a 0.95 mm Laval nozzle nominal width, a 15 mm width dimension, an open muffler construction type, and an any mounting position. It delivers high vacuum and standard ejector characteristics with a 40 µm filtration grade, non-detenting manual override, and integrated functions including an electric ejector pulse, flow control valve, pressure sensor, electric on-off valve, filter, and open muffler. Operating within a 0.2 MPa to 0.7 MPa range, it achieves a max vacuum of 92% at 0.38 MPa operating pressure and incorporates a piezoresistive pressure sensor with an LED 2-digit display, switchable N/C or N/O switching element function, and configuration via IO-Link, teach-in, or display and keys. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8069572
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8069572.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.95 mm
- Width dimension
- 15 mm
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
- High vacuum | Standard
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Ejector pulse, electric | Flow control valve | Pressure sensor | Electric on-off valve | Filter | Muffler open
- Structural design
- T-shape
- Switching element function
- N/C contact/N/O contact, switchable
- Switching function
- Freely programmable
- Valve function
- Closed
- Method of measurement
- Piezoresistive pressure sensor with display
- Display type
- LED indicator | 2-digit
- Setting options
- IO-Link® | Teach-in | Via display and keys
- Operating pressure for max. suction rate
- 0.4 MPa | 4 bar | 58 psi
- Operating pressure
- 0.2 MPa...0.7 MPa | 2 bar...7 bar | 29 psi...101.5 psi
- Operating pressure for max. vacuum
- 0.38 MPa | 3.8 bar | 55.1 psi
- Max. vacuum
- 92 %
- Nominal operating pressure
- 0.4 MPa | 4 bar
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8069572. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
