Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas+1 417 261 6001 info@mropartsrfq.com

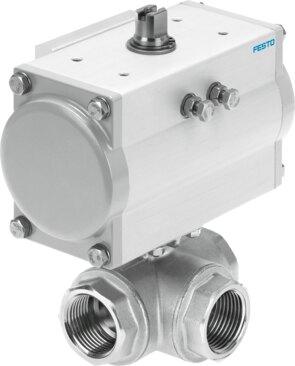

Reference imageConfirm configuration by manufacturer part number.
Festo
8070258
Ball valve actuator unit VZBM-A-1/4"-RP-25-F-3T-B2-PA10
Festo Ball valve actuator unit VZBM-A-1/4"-RP-25-F-3T-B2-PA10, part number 8070258, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8070258
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8070258.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Structural design
- 3-way ball valve | Quarter turn actuator
- Actuation type
- Pneumatic
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp1/4
- Switching position indication
- Slot direction = ow direction
- Nominal width DN
- 8
- Operating pressure
- 5.5 bar...8 bar
- Nominal pressure of tting PN
- 25
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Dew point min. 10 °C below the ambient temperature and temperature | of medium | Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -20 °C...130 °C
- Ambient temperature
- -20 °C...80 °C
- Flow rate Kv type T corner
- 5.9 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Brass, nickel-plated
- Material number of housing
- CW617N
- Seals material
- HNBR | PTFE
- Ball material
- Brass, chrome-plated
- Material number for ball
- CW614N
- Shaft material
- Brass
- Material number for shaft
- CW614N
- Product weight
- 1511 g
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8070258. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
