Name: Festo 8070260 Ball valve actuator unit VZBM-A-1/2"-RP-25-F-3T-B2-PA10
Brand: Festo

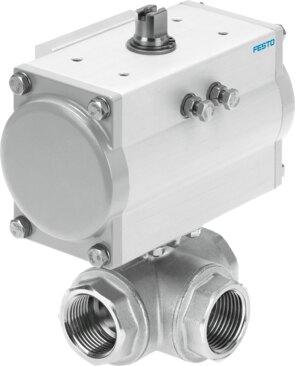

Ball valve actuator unit VZBM-A-1/2"-RP-25-F-3T-B2-PA10

The Festo 8070260 is an industrial 3-way ball valve featuring a quarter turn pneumatic actuator designed for in-line installation in any mounting position. Constructed with a nickel-plated CW617N brass housing and HNBR and PTFE seals, this Rp1/2 component accommodates a nominal width DN of 15, an operating pressure of 5.5 bar to 8 bar, and a nominal fitting pressure PN of 25. It regulates compressed air, inert gases, water without water vapor, and neutral liquids across medium temperatures ranging from -20 °C to 130 °C and ambient temperatures from -20 °C to 80 °C, featuring a T-corner flow rate Kv of 17 m³/h and a slot direction matching the flow direction for switching position indication. Please submit the exact part number, quantity, and application requirements to request a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8070260
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8070260.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: 3-way ball valve | Quarter turn actuator
Actuation type: Pneumatic
Mounting position: Any
Type of mounting: In-line installation
Fitting connection: Rp1/2
Switching position indication: Slot direction = ow direction
Nominal width DN: 15
Operating pressure: 5.5 bar...8 bar
Nominal pressure of tting PN: 25
Medium: Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Dew point min. 10 °C below the ambient temperature and temperature | of medium | Operation with oil lubrication possible (required for further use)
Temperature of medium: -20 °C...130 °C
Ambient temperature: -20 °C...80 °C
Flow rate Kv type T corner: 17 m³/h
Note on materials: RoHS compliant
LABS (PWIS) conformity: VDMA24364 Zone III
Housing material: Brass, nickel-plated
Material number of housing: CW617N
Seals material: HNBR | PTFE
Ball material: Brass, chrome-plated
Material number for ball: CW614N
Shaft material: Brass
Material number for shaft: CW614N
Product weight: 1441 g
Corrosion resistance class (CRC): 1 - Low corrosion stress

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8070260. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
