Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

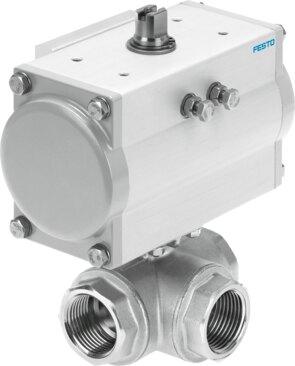

Reference imageConfirm configuration by manufacturer part number.
Festo
8070261
Ball valve actuator unit VZBM-A-3/4"-RP-25-F-3T-B2-PA20
The Festo 8070261 is a 3-way ball valve featuring a quarter turn pneumatic actuator and an Rp3/4 in-line fitting connection with a nominal width DN of 20 and a PN 25 nominal pressure rating. Built with a nickel-plated brass housing (CW617N material number) and HNBR and PTFE seals, this component operates within a medium temperature range of -20 °C to 130 °C and an ambient temperature range of -20 °C to 80 °C at an operating pressure of 5.5 bar to 8 bar. It accommodates compressed air, inert gas, water without water vapor, and neutral liquids, utilizing a slot direction matching the flow direction for switching position indication. Please submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8070261
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8070261.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 3-way ball valve | Quarter turn actuator
- Actuation type
- Pneumatic
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp3/4
- Switching position indication
- Slot direction = ow direction
- Nominal width DN
- 20
- Operating pressure
- 5.5 bar...8 bar
- Nominal pressure of tting PN
- 25
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Dew point min. 10 °C below the ambient temperature and temperature | of medium | Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -20 °C...130 °C
- Ambient temperature
- -20 °C...80 °C
- Flow rate Kv type T corner
- 41 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Brass, nickel-plated
- Material number of housing
- CW617N
- Seals material
- HNBR | PTFE
- Ball material
- Brass, chrome-plated
- Material number for ball
- CW614N
- Shaft material
- Brass
- Material number for shaft
- CW614N
- Product weight
- 2001 g
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8070261. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
