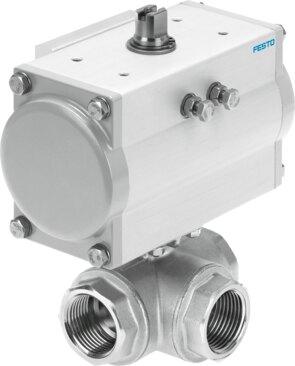

Name: Festo 8070262 Ball valve actuator unit VZBM-A-1"-RP-25-F-3T-B2-PA20
Brand: Festo

Ball valve actuator unit VZBM-A-1"-RP-25-F-3T-B2-PA20

The Festo part number 8070262 is a 3-way ball valve featuring a quarter turn pneumatic actuator designed for in-line installation in any mounting position. Constructed from nickel-plated brass housing material with CW617N material number, HNBR and PTFE seals, this component supports an operating pressure of 5.5 bar to 8 bar and a nominal pressure PN of 25. It accommodates a nominal width DN of 25, a medium temperature range of -20 °C to 130 °C, an ambient temperature range of -20 °C to 80 °C, and provides a flow rate Kv type T corner of 70 m³/h for compressed air, inert gas, water without vapor, and neutral liquids. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8070262
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8070262.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: 3-way ball valve | Quarter turn actuator
Actuation type: Pneumatic
Mounting position: Any
Type of mounting: In-line installation
Fitting connection: Rp1
Switching position indication: Slot direction = ow direction
Nominal width DN: 25
Operating pressure: 5.5 bar...8 bar
Nominal pressure of tting PN: 25
Medium: Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water – no water vapor | Neutral liquids
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Dew point min. 10 °C below the ambient temperature and temperature | of medium | Operation with oil lubrication possible (required for further use)
Temperature of medium: -20 °C...130 °C
Ambient temperature: -20 °C...80 °C
Flow rate Kv type T corner: 70 m³/h
Note on materials: RoHS compliant
LABS (PWIS) conformity: VDMA24364 Zone III
Housing material: Brass, nickel-plated
Material number of housing: CW617N
Seals material: HNBR | PTFE
Ball material: Brass, chrome-plated
Material number for ball: CW614N
Shaft material: Brass
Material number for shaft: CW614N
Product weight: 2554 g
Corrosion resistance class (CRC): 1 - Low corrosion stress
