Festo
8071579

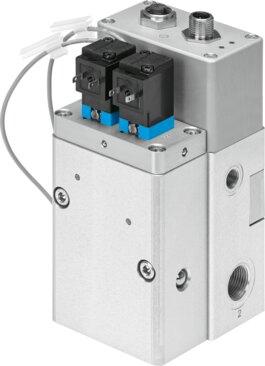

Valve unit VPCB-6-L-8-G38-10-F-D3-T22-M
The Festo part number 8071579 is a directly controlled 3-way proportional pressure control valve featuring a piston gate valve structural design with integrated pressure sensors and an LED display. Operating within an operating pressure range of 0.4 MPa to 0.8 MPa (4 bar to 8 bar), this component delivers a normal nominal flow rate of 725 l/min for compressed air conforming to ISO 8573-1:2010 [6:4:4]. It includes short-circuit protection, a magnetic spring reset method, a hard sealing principle, and achieves an IP65 degree of protection when in the mounted state. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8071579
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8071579.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3-way proportional pressure control valve
- Structural design
- Piston gate valve | With integrated pressure sensors
- Type of control
- directly
- Actuation type
- Electrical
- Reset method
- Magnetic spring
- Flow direction
- Non-reversible
- Mounting position
- Any
- Sealing principle
- Hard
- Nominal width
- 6 mm
- Short-circuit protection
- Yes
- Display type
- LED
- Normal nominal ow rate (normalized to DIN 1343)
- 725 l/min
- Operating pressure
- 0.4 MPa...0.8 MPa | 4 bar...8 bar
- Typical lowering speed
- 15 mm/s
- Note on lowering speed
- When manual exhausting is actuated with cylinder diameter 80 mm, | transmission ratio 1:1 and 100 kg load.
- Ambient temperature
- 0 °C...50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [6:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible | Maximum particle size 5 µm
- Degree of protection
- IP65
- Note on degree of protection
- In mounted state
- Certication
- RCM compliance mark
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8071579. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
