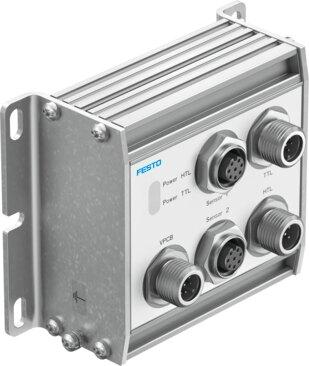

Name: Festo 8071781 Signal convertor CASB-MT-D3-R7
Brand: Festo

Signal convertor CASB-MT-D3-R7

The Festo industrial component, part number 8071781, operates on a nominal DC voltage of 24 V with an operating range of 20.4 V to 30 V and a maximum electrical power consumption of 6 W. This device features LED diagnostic indication, reverse polarity protection, a 100% duty cycle, and dual output frequencies up to 7200 Hz for TTL signals and 450 Hz for HTL signals. Certified with RCM compliance, KC-EMV, CE, and UKCA markings, the unit supports universal mounting positions and withstands severity level 2 vibration and shock resistance. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8071781
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8071781.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Application note: The product is suitable for industrial purposes only. Radio interference | suppression measures may be required in residential areas.
Diagnostic function: Indication via LED
Mounting position: Any
Reverse polarity protection: Yes
Output frequency: TTL-Signal: max. 7200 Hz | HTL signal: max. 450 Hz
DC operating voltage range: 20.4 V...30 V
Duty cycle: 100%
Max. electrical power consumption: 6 W
Nominal operating voltage DC: 24 V
Residual ripple: 5%
Current consumption with load-free outputs: 50 mA
Current rating per output: 50 mA
Certication: RCM compliance mark
KC characters: KC-EMV
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Protection against direct and indirect contact: PELV
Degree of protection: IP65
Note on degree of protection: In mounted state
Ambient temperature: -5 °C...50 °C
Product weight: 350 g
Signal range: HTL signal: high: min. 18 V; low: max. 2 V | TTL signal: high: min. 2.4 V, low: max. 0.4 V
Electrical connection output, function: TTL
