8072668

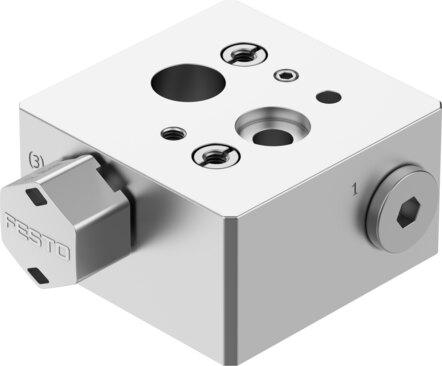

Name: Festo 8072668 Sub-base VABS-S7-BE-BS-G14-VDE2
Brand: Festo

Sub-base VABS-S7-BE-BS-G14-VDE2

The Festo part number 8072668 is an industrial component featuring an ematal-coated aluminum sub-base and NBR seals with RoHS compliance, weighing 362 g. It operates with compressed air as per ISO 8573-1:2010 [-:-:-] within an operating pressure range of 0 MPa to 1 MPa (0 bar to 10 bar) and supports any mounting position via through-hole and screw installation. This unit is equipped with a G1/4 pilot air port 12, G1/4 pneumatic connection 1, G1/4 pneumatic connection 3, and VDI/VDE 3847 (NAMUR) pneumatic connection 2, while providing a corrosion resistance class (CRC) of 4 for particularly high corrosion stress and VDMA24364 Zone III LABS conformity. Depending on the exhaust protection used, it achieves an IP54 degree of protection with a labyrinth or an IP65 degree of protection with a sealing ring. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8072668
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8072668.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Operating pressure: 0 MPa...1 MPa | 0 bar...10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [-:-:-]
Corrosion resistance class (CRC): 4 - Particularly high corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Degree of protection: IP54 | IP65
Note on degree of protection: IP54 for exhaust protection with labyrinth (e.g. VABD-D3-L) | IP65 for exhaust protection with sealing ring (e.g. VABD-D3-SN)
Product weight: 362 g
Type of mounting: With through-hole and screw
Pilot air port 12: G1/4
Pneumatic connection 1: G1/4
Pneumatic connection 2: VDI/VDE 3847 (NAMUR)
Pneumatic connection 3: G1/4
Note on materials: RoHS compliant
Material of sub-base: Aluminum, ematal coated
Seals material: NBR

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8072668. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
