Festo
8072774

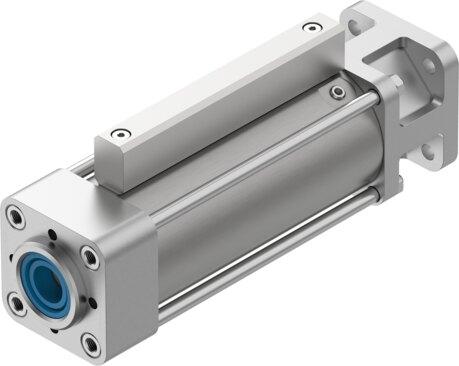

Holding brake DACS-16-A-R3-S
The Festo 8072774 is an industrial component featuring a static holding force of 1,350 N designed for clamping 16 mm round material from both sides via spring force and compressed air release within an operating pressure range of 0.38 MPa to 0.8 MPa. Certified by TÜV with a Category 1, Performance Level c safety rating for stopping, holding, and blocking movement, it includes ATEX certification for Zones 1, 2, 21, and 22, and features a corrosion resistance class of 3 for high corrosion stress across an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8072774
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8072774.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Clamping type with active direction
- Both sides | Clamped by spring, released by compressed air
- Position sensing
- Via proximity switch
- Safety function
- Holding and stopping a movement
- Performance Level (PL)
- Stopping, holding, blocking of movement/Category 1, Performance | Level c
- Operating pressure
- 0.38 MPa...0.8 MPa | 3.8 bar...8 bar | 55.1 psi...116 psi
- Max. permissible test pressure
- 8 bar
- Min. release pressure
- 3.8 bar
- Round material to be clamped
- 16 mm
- Certication
- TÜV
- CE marking (see declaration of conformity)
- as per EU machinery directive
- UKCA marking (see declaration of conformity)
- To UK instructions for machines
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Certicate issuing authority
- TÜV CA 697
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -20 °C...80 °C
- Static holding force
- 1350 N
- Product weight
- 1483 g
- Type of mounting
- With internal thread | With accessories
- Clamping unit release connection
- G1/8
- Note on materials
- RoHS compliant
- Seals material
- NBR
