Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

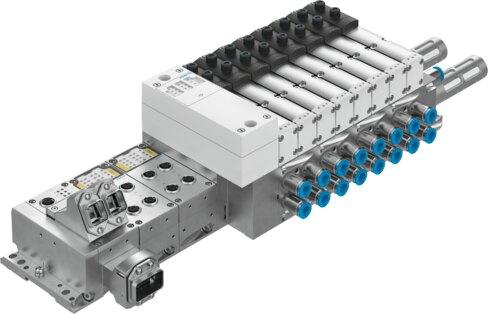

Reference imageConfirm configuration by manufacturer part number.
Festo
8073100
Valve manifold VTSA-F-CB
The Festo part number 8073100 is an industrial component featuring Ethernet, Fieldbus, and an integrated controller for electrical actuation, along with an integrated electrical I/O system and valve terminal type 46. It operates within a temperature range of -5 °C to 50 °C and an operating pressure of -0.09 MPa to 1 MPa, utilizing compressed air as per ISO 8573-1:2010 [7:4:4] for both operating and pilot media without the possibility of oil lubrication. The unit carries an IP65 degree of protection, a VDMA24364-B1/B2-L LABS conformity rating, a CE marking per the EU EMC directive, KC-EMV characters, and c UL us recognition under UL E322346. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8073100
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8073100.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Electrical actuation
- Ethernet | Fieldbus | Integrated controller
- Electrical I/O system
- Yes
- Valve terminal type
- 46
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- Ambient temperature
- -5 °C...50 °C
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 90%
- Degree of protection
- IP65
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure
- 3 bar...10 bar
- Operating pressure for valve manifold with internal pilot air supply
- 0.3 MPa...1 MPa | 3 bar...10 bar | 43.5 psi...145 psi
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- CE marking (see declaration of conformity)
- As per EU EMC directive
- KC characters
- KC-EMV
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- UL E322346
- Note on materials
- RoHS compliant
- Valve manifold design
- Modular, pneumatic valve sizes can be mixed
- Manual override
- Detenting | Detenting via accessory | Non-detenting | Covered | Self-resetting via electrical control signal
- Number of voltage zones
- 6
- Number of controllable coils per voltage zone
- 24
- Number of controllable coils per valve manifold
- 96
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8073100. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
