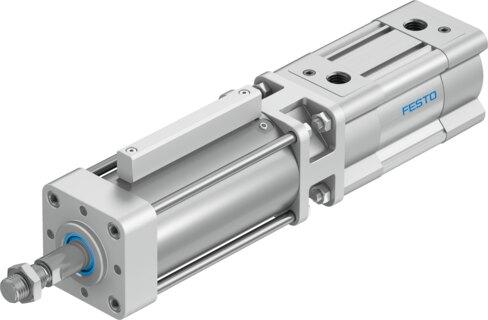

Reference imageConfirm configuration by manufacturer part number.
Festo
8073332
Cylinder with holding brake DFLC-63- -
The Festo part number 8073332 is a double-acting industrial component with a 63 mm piston diameter, an M16x1.5 piston rod thread, and a stroke length ranging from 10 mm to 2000 mm. Built on the ISO 15552 norm with a profile barrel structural design, it features adjustable pneumatic cushioning at both ends, position sensing via proximity switch, and any mounting position. The unit incorporates an active clamping type on both sides that is spring-clamped and pneumatically released to provide Category 1, Performance Level c safety functions for holding, stopping, and blocking movement. Operating within a pressure range of 0.06 MPa to 0.8 MPa, this TÜV-certified component carries CE and UKCA markings compliant with machinery and explosion protection directives. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8073332
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8073332.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...2000 mm
- Piston diameter
- 63 mm
- Piston rod thread
- M16x1.5
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Clamping type with active direction
- Both sides | Clamped by spring, released by compressed air
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Safety function
- Holding and stopping a movement
- Performance Level (PL)
- Stopping, holding, blocking of movement/Category 1, Performance | Level c
- Operating pressure
- 0.06 MPa...0.8 MPa | 0.6 bar...8 bar | 8.7 psi...116 psi
- Max. permissible test pressure
- 8 bar
- Min. release pressure
- 3.8 bar
- Mode of operation
- Double-acting
- Certication
- TÜV
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX) | as per EU machinery directive
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions | To UK instructions for machines
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Certicate issuing authority
- TÜV CA 697
- ATEX category gas
- II 2G
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8073332. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
