Festo
8073817

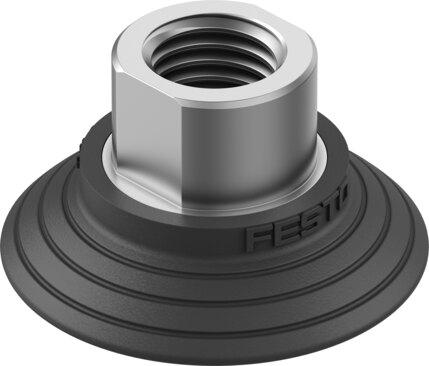

Vacuum suction cup OGVM-40-S-N-G14F
The Festo 8073817 is a round, flat industrial component featuring a 40 mm suction cup diameter, a 4 mm nominal width, and a 4 mm height compensation with a 37.5 mm minimum workpiece radius. Operating within a pressure range of -95 kPa to 0 kPa and a nominal operating pressure of -60 kPa, this 10 g black unit delivers a holding and lateral force of 53 N using atmospheric air via a G1/4 internal thread vacuum connection. It incorporates a moderate corrosion resistance class of CRC 2, VDMA24364-A1-L LABS conformity, and an ambient temperature range of -20 °C to 80 °C for mounting in any position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8073817
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8073817.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 4 mm
- Min. workpiece radius
- 37.5 mm
- Nominal width
- 4 mm
- Suction cup diameter
- 40 mm
- Suction cup volume
- 4.4 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, at
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 53 N
- Lateral force at nominal operating pressure
- 53 N
- Product weight
- 10 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Internal thread G1/4
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
