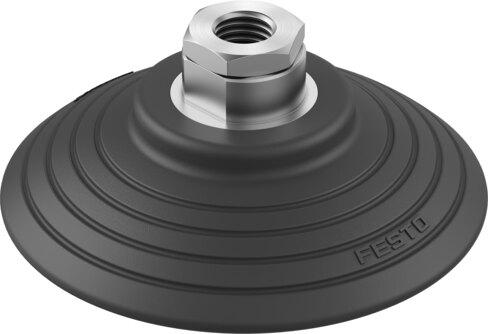

Reference imageConfirm configuration by manufacturer part number.
Festo
8073821
Vacuum suction cup OGVM-100-S-N-G14F
This Festo industrial component, part number 8073821, is a round, flat suction cup with a 100 mm diameter and an 8 mm nominal width featuring an internal thread G1/4 vacuum connection and a 9.5 mm height compensation. Operating within a pressure range of -95 kPa to 0 kPa and an ambient temperature range of -20 °C to 80 °C, it delivers a holding force of 351 N and a lateral force of 140 N at a nominal operating pressure of -60 kPa. Weighing 100 g with moderate corrosion resistance and VDMA24364-A1-L LABS conformity, this black component mounts in any position via its vacuum connection using atmospheric air operating media for workpieces with a minimum radius of 100 mm. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8073821
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8073821.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 9.5 mm
- Min. workpiece radius
- 100 mm
- Nominal width
- 8 mm
- Suction cup diameter
- 100 mm
- Suction cup volume
- 68 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Round, at
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 351 N
- Lateral force at nominal operating pressure
- 140 N
- Product weight
- 100 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Internal thread G1/4
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8073821. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
