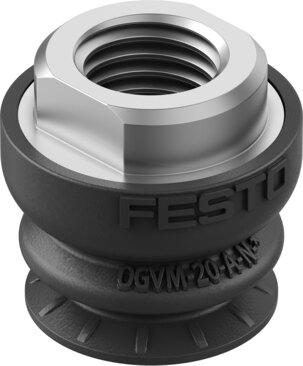

Reference imageConfirm configuration by manufacturer part number.
Festo
8073834
Vacuum suction cup OGVM-20-A-N-G14F
Festo Vacuum suction cup OGVM-20-A-N-G14F, part number 8073834, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8073834
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8073834.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Suction cup height compensation
- 5.8 mm
- Min. workpiece radius
- 12.5 mm
- Nominal width
- 4 mm
- Suction cup diameter
- 20 mm
- Suction cup volume
- 2 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 15 N
- Lateral force at nominal operating pressure
- 15 N
- Product weight
- 12 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Internal thread G1/4
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8073834. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
