Festo
8073839

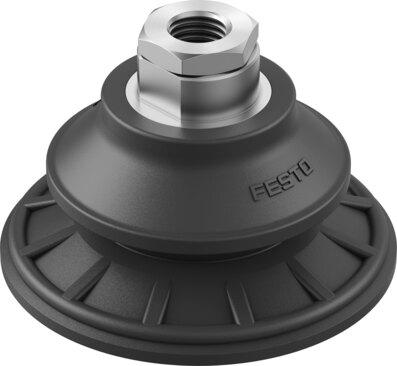

Vacuum suction cup OGVM-80-A-N-G14F
The Festo 8073839 is a round 1.5-fold protective bellows industrial component featuring an 80 mm suction cup diameter, 22 mm height compensation, and an 8 mm nominal width with a 64 cm³ suction cup volume. Operating at pressures from -95 kPa to 0 kPa with a nominal operating pressure of -60 kPa using atmospheric air, this black 75 g unit delivers a holding force of 246 N and a lateral force of 225 N. It includes a G1/4 internal thread vacuum connection for mounting in any position, exhibits a CRC 2 moderate corrosion stress rating, conforms to VDMA24364-A1-L LABS, and functions within an ambient temperature range of -20 °C to 80 °C with a 75 mm minimum workpiece radius. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8073839
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8073839.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 22 mm
- Min. workpiece radius
- 75 mm
- Nominal width
- 8 mm
- Suction cup diameter
- 80 mm
- Suction cup volume
- 64 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 246 N
- Lateral force at nominal operating pressure
- 225 N
- Product weight
- 75 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Internal thread G1/4
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
