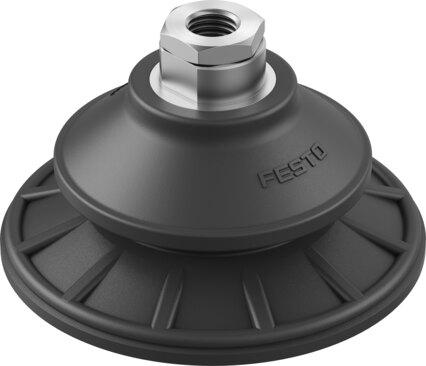

Reference imageConfirm configuration by manufacturer part number.
Festo
8073840
Vacuum suction cup OGVM-100-A-N-G14F
The Festo 8073840 is a round protective bellows 1.5-fold industrial component featuring a 100 mm suction cup diameter, 8 mm nominal width, and 26 mm height compensation. Designed with an internal thread G1/4 vacuum connection and any mounting position, this black 109 g unit delivers a holding force of 379 N and a lateral force of 346 N at a nominal operating pressure of -60 kPa. It operates within a pressure range of -95 kPa to 0 kPa and an ambient temperature range of -20 °C to 80 °C while maintaining moderate corrosion resistance class 2 and VDMA24364-A1-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8073840
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8073840.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 26 mm
- Min. workpiece radius
- 90 mm
- Nominal width
- 8 mm
- Suction cup diameter
- 100 mm
- Suction cup volume
- 115 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- round protective bellows 1.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 379 N
- Lateral force at nominal operating pressure
- 346 N
- Product weight
- 109 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Internal thread G1/4
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8073840. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
