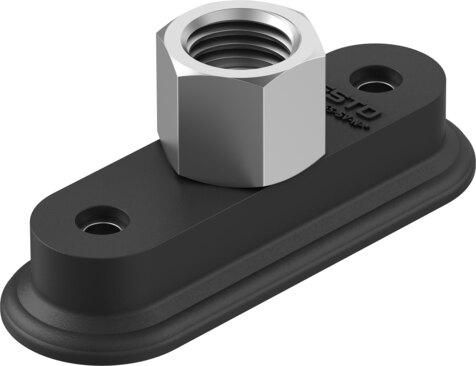

Reference imageConfirm configuration by manufacturer part number.
Festo
8073853
Vacuum suction cup OGVM-20X65-SV-N-G14F
The Festo 8073853 is an oval, flat industrial suction cup measuring 20x65 mm with a nominal width of 6 mm, a 3 mm height compensation, and a 3.6 cm³ internal volume. It operates between -95 kPa and 0 kPa across a -20 °C to 80 °C ambient temperature range using atmospheric air compliant with ISO 8573-1:2010 [7:-:-]. Featuring a black elastomer body with a G1/4 internal thread vacuum connection and CRC 2 moderate corrosion resistance, this 21 g component delivers a holding force of 66 N and a vertical lateral force of 76 N at a nominal operating pressure of -60 kPa. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8073853
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8073853.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 3 mm
- Min. workpiece radius
- 20 mm
- Nominal width
- 6 mm
- Vacuum cup size
- 20x65 mm
- Suction cup volume
- 3.6 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- Oval, at
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 66 N
- Vertical lateral force at nominal operating pressure
- 76 N
- Product weight
- 21 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Internal thread G1/4
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8073853. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
