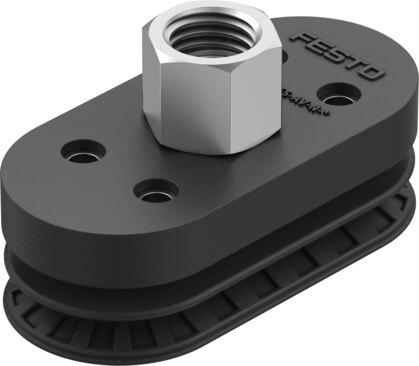

Reference imageConfirm configuration by manufacturer part number.
Festo
8073865
Vacuum suction cup OGVM-30X65-AV-N-G14F
The Festo 8073865 is an industrial component featuring an oval protective bellows 1.5-fold suction cup of 30x65 mm with a 7 mm height compensation, a 15 mm minimum workpiece radius, and a 6 mm nominal width. Weighing 48 g in black, this part operates within a pressure range of -95 kPa to 0 kPa using atmospheric air based on ISO 8573-1:2010 [7:-:-], delivering a holding force of 66 N and a vertical lateral force of 104 N at its nominal operating pressure of -60 kPa. It incorporates an internal thread G1/4 vacuum connection for mounting in any position and exhibits a CRC 2 moderate corrosion stress rating alongside VDMA24364-A1-L LABS conformity across an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8073865
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8073865.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 7 mm
- Min. workpiece radius
- 15 mm
- Nominal width
- 6 mm
- Vacuum cup size
- 30x65 mm
- Suction cup volume
- 11.5 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- oval protective bellows 1.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 66 N
- Vertical lateral force at nominal operating pressure
- 104 N
- Product weight
- 48 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Internal thread G1/4
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
