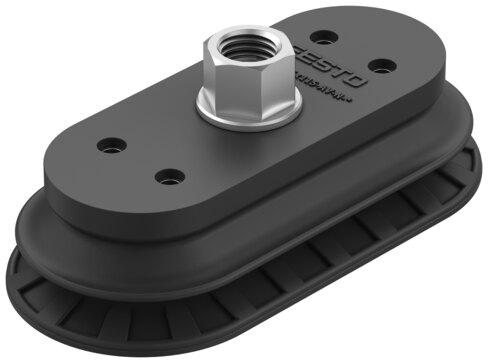

Reference imageConfirm configuration by manufacturer part number.
Festo
8073867
Vacuum suction cup OGVM-55X115-AV-N-G14F
The Festo 8073867 is an industrial component featuring an oval protective bellows 1.5-fold suction cup measuring 55x115 mm with a nominal width of 8 mm and an internal thread G1/4 vacuum connection pointing up. Operating at a nominal pressure of -60 kPa within a range of -95 kPa to 0 kPa, this 76 g black unit provides a holding force of 200 N and a vertical lateral force of 234 N, alongside a 13 mm height compensation and 50 mm minimum workpiece radius. It functions within an ambient temperature range of -20 °C to 80 °C using atmospheric air based on ISO 8573-1:2010 [7:-:-], and incorporates a moderate corrosion resistance class of CRC 2 with VDMA24364-A1-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8073867
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8073867.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 13 mm
- Min. workpiece radius
- 50 mm
- Nominal width
- 8 mm
- Vacuum cup size
- 55x115 mm
- Suction cup volume
- 52 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- oval protective bellows 1.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 200 N
- Vertical lateral force at nominal operating pressure
- 234 N
- Product weight
- 76 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Internal thread G1/4
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8073867. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
