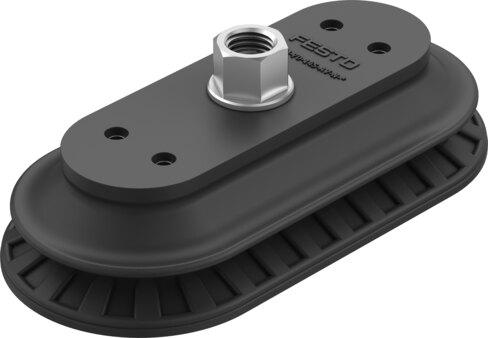

Reference imageConfirm configuration by manufacturer part number.
Festo
8073868
Vacuum suction cup OGVM-70X145-AV-N-G14F
This Festo 8073868 industrial component features a 70x145 mm oval protective bellows 1.5-fold suction cup design with an 8 mm nominal width and 111 cm³ suction cup volume. It provides a 16.5 mm height compensation, a 70 mm minimum workpiece radius, a holding force of 446 N, and a vertical lateral force of 317 N at the nominal operating pressure of -60 kPa. Constructed with a G1/4 internal thread vacuum connection and moderate corrosion resistance class 2, the 156 g black unit operates within an ambient temperature range of -20 °C to 80 °C and pressures from -95 kPa to 0 kPa using atmospheric air based on ISO 8573-1:2010 [7:-:-]. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8073868
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8073868.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Suction cup height compensation
- 16.5 mm
- Min. workpiece radius
- 70 mm
- Nominal width
- 8 mm
- Vacuum cup size
- 70x145 mm
- Suction cup volume
- 111 cm³
- Connection position
- up
- Mounting position
- Any
- Suction cup shape
- oval protective bellows 1.5-fold
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar | -13.775 psi...0 psi
- Nominal operating pressure
- -60 kPa | -0.6 bar
- Operating medium
- Atmospheric air based on ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-A1-L
- Ambient temperature
- -20 °C...80 °C
- Holding force at nominal operating pressure
- 446 N
- Vertical lateral force at nominal operating pressure
- 317 N
- Product weight
- 156 g
- Type of mounting
- Via vacuum connection
- Vacuum connection
- Internal thread G1/4
- Color
- Black
- Shore hardness
- 60 +/-5
- Material of screwed plug
- Wrought aluminum alloy
- Note on materials
- RoHS compliant
- Suction cup material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8073868. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
