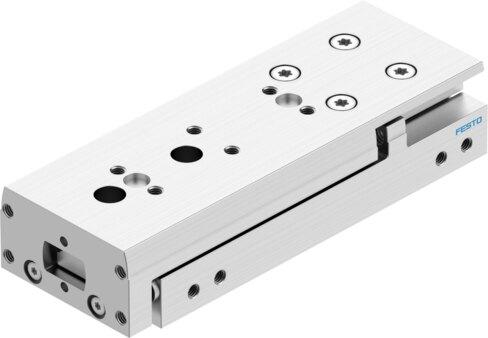

Reference imageConfirm configuration by manufacturer part number.
Festo
8073892
Mini slide DGST-8- -
Festo Mini slide DGST-8- -, part number 8073892, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8073892
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8073892.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Stroke
- 10 mm...80 mm
- Adjustable end-position range/front length
- 6.05 mm...16.3 mm
- Adjustable end-position range/rear length
- 6.9 mm...15.7 mm
- Piston diameter
- 8 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Short elastic cushioning rings/pads at both ends | Elastomer cushioning, at both ends, stroke not adjustable | Elastic cushioning rings/pads at both ends | Elastic cushioning rings/pads at both ends with xed stop | External hydraulic cushioning
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Double piston | Yoke | Piston rod | Slide
- Position sensing
- Via proximity switch
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
- Max. speed
- 0.5 m/s...0.8 m/s
- Repetition accuracy
- <= 0.3 mm | <= 0.02 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
