Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

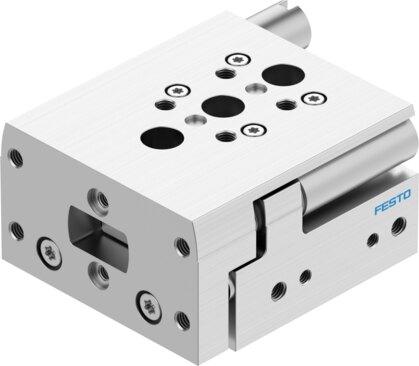

Reference imageConfirm configuration by manufacturer part number.
Festo
8073895
Mini slide DGST-16- -
The Festo 8073895 is a double-acting industrial drive unit featuring a 16 mm piston diameter, a stroke length ranging from 10 mm to 150 mm, and a yoke structural design with an integrated recirculating ball bearing guide. Operating efficiently across a pressure range of 0.1 MPa to 0.8 MPa (1 bar to 8 bar) with compressed air as per ISO 8573-1:2010 [7:4:4], this component supports speeds up to 0.5 m/s to 0.8 m/s and features elastomer cushioning at both ends. Constructed with a corrosion resistance class of CRC 1 and restricted copper, zinc, and nickel content suitable for Li-ion battery production facilities, it enables position sensing via proximity switches in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8073895
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8073895.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...150 mm
- Adjustable end-position range/front length
- 6.2 mm...22.8 mm
- Adjustable end-position range/rear length
- 6.35 mm...21.5 mm
- Piston diameter
- 16 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Short elastic cushioning rings/pads at both ends | Elastomer cushioning, at both ends, stroke not adjustable | Elastic cushioning rings/pads at both ends | Elastic cushioning rings/pads at both ends with xed stop | External hydraulic cushioning
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Double piston | Yoke | Piston rod | Slide
- Position sensing
- Via proximity switch
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Operating pressure
- 0.1 MPa...0.8 MPa | 1 bar...8 bar | 14.5 psi...116 psi
- Max. speed
- 0.5 m/s...0.8 m/s
- Repetition accuracy
- <= 0.3 mm | <= 0.02 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8073895. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
