8073897

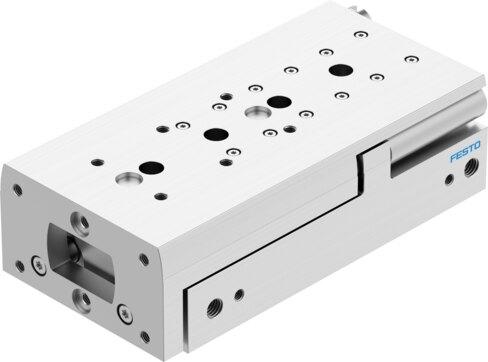

Name: Festo 8073897 Mini slide DGST-25- -
Brand: Festo

Mini slide DGST-25- -

The Festo part number 8073897 is a double-acting industrial component featuring a 25 mm piston diameter, a stroke range of 10 mm to 200 mm, and a yoke drive unit operating mode with a ball bearing cage guide. It operates at a pressure range of 0.1 MPa to 0.8 MPa (1 bar to 8 bar / 14.5 psi to 116 psi) using compressed air as per ISO 8573-1:2010 [7:4:4] and includes elastomer cushioning or short elastic cushioning rings/pads at both ends. The unit offers a repetition accuracy of <= 0.3 mm or <= 0.02 mm, a maximum speed from 0.5 m/s to 0.8 m/s, and is suitable for battery production with reduced Cu/Zn/Ni values (F1a) while excluding specific metals by mass. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8073897
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8073897.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 10 mm...200 mm
Adjustable end-position range/front length: 5.95 mm...47 mm
Adjustable end-position range/rear length: 6.3 mm...45.4 mm
Piston diameter: 25 mm
Drive unit operating mode: Yoke
Cushioning: Short elastic cushioning rings/pads at both ends | Elastomer cushioning, at both ends, stroke not adjustable | Elastic cushioning rings/pads at both ends | Elastic cushioning rings/pads at both ends with xed stop | External hydraulic cushioning
Mounting position: Any
Guide: Ball bearing cage guide
Structural design: Double piston | Yoke | Piston rod | Slide
Position sensing: Via proximity switch
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
Operating pressure: 0.1 MPa...0.8 MPa | 1 bar...8 bar | 14.5 psi...116 psi
Max. speed: 0.5 m/s...0.8 m/s
Repetition accuracy: <= 0.3 mm | <= 0.02 mm
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -10 °C...60 °C

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8073897. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
