Festo
8073906

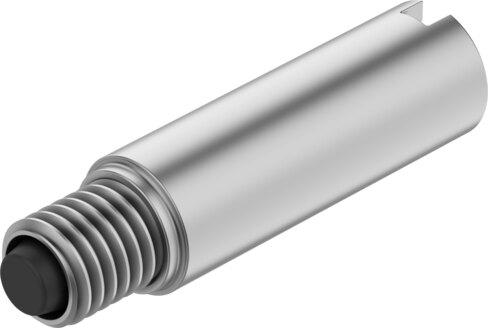

Shock absorber DYEF-G8-M10-Y1
The Festo 8073906 industrial component features an M10 size with a 1 mm stroke and elastic cushioning rings or pads at both ends without a fixed metal stop. Constructed with a high-alloy steel housing and NBR seals, this 41 g unit achieves a maximum energy absorption of 0.25 J per stroke at a maximum impact velocity of 0.8 m/s within an ambient temperature range of -10 °C to 60 °C. It provides a corrosion resistance class of 2 for moderate corrosion stress, VDMA24364-B2-L LABS conformity, and RoHS compliant materials, utilizing a threaded sleeve for mounting in any position with a maximum tightening torque of 3 Nm. Submit the exact part number, quantity, and application requirements to request a quote for this part.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8073906
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8073906.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M10
- Stroke
- 1 mm
- Cushioning
- Elastic cushioning rings/pads at both ends, without xed metal stop
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 0.8 m/s
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Cushioning length
- 1 mm
- Max. tightening torque
- 3 Nm
- Max. energy absorption per stroke
- 0.25 J
- Product weight
- 41 g
- Type of mounting
- With threaded sleeve
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8073906. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
