Festo
8073908

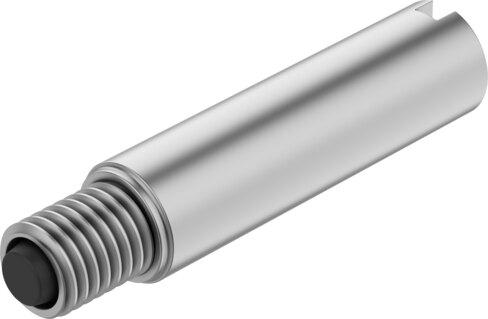

Shock absorber DYEF-G8-M14-Y1
The Festo 8073908 is an M14 industrial component featuring a 1.2 mm stroke and elastic cushioning rings or pads at both ends without a fixed metal stop. Built with a high-alloy steel housing, NBR seals, and a threaded sleeve for mounting in any position, it operates within an ambient temperature range of -10 °C to 60 °C. This RoHS-compliant part supports a maximum impact velocity of 0.8 m/s, a maximum tightening torque of 8 Nm, and a maximum energy absorption of 0.45 J per stroke with a CRC rating of 2. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8073908
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8073908.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M14
- Stroke
- 1.2 mm
- Cushioning
- Elastic cushioning rings/pads at both ends, without xed metal stop
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 0.8 m/s
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Cushioning length
- 1.2 mm
- Max. tightening torque
- 8 Nm
- Max. energy absorption per stroke
- 0.45 J
- Product weight
- 136.5 g
- Type of mounting
- With threaded sleeve
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8073908. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
