Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

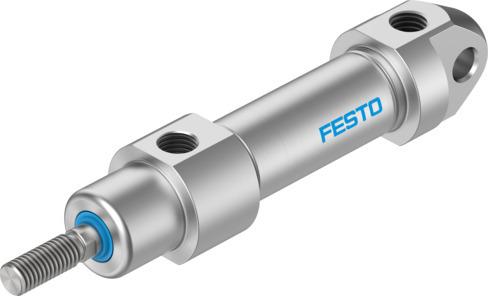

Reference imageConfirm configuration by manufacturer part number.
Festo
8073973
ISO cylinder CRDSNU-B-20-160-PPS-A-MG-A1
The Festo 8073973 is a double-acting industrial component featuring a 20 mm piston diameter and a 160 mm stroke based on ISO 6432. Built with a piston, piston rod, and cylinder barrel, this unit operates at pressures from 1 bar to 10 bar utilizing compressed air per ISO 8573-1:2010 [7:4:4] with possible oil lubrication. It delivers a theoretical force of 188 N advancing and 158 N retracting at 6 bar, incorporating self-adjusting pneumatic end-position cushioning and position sensing via proximity switch. The assembly features a corrosion resistance class of 4 for particularly high corrosion stress, VDMA24364-B2-L LABS conformity, an ambient temperature range of 0 °C to 80 °C, and can be mounted in any position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8073973
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8073973.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 160 mm
- Piston diameter
- 20 mm
- Based on norm
- ISO 6432
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- 0 °C...80 °C
- Theoretical force at 6 bar, retracting
- 158 N
- Theoretical force at 6 bar, advancing
- 188 N
- Moving mass at 0 mm stroke
- 42.1 g
- Additional moving mass per 10 mm stroke
- 3.9 g
- Basic weight with 0 mm stroke
- 310 g
- Additional weight per 10 mm stroke
- 7.2 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Cover material
- high-alloy stainless steel
- Piston rod material
- high-alloy stainless steel
- Material of cylinder barrel
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8073973. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
