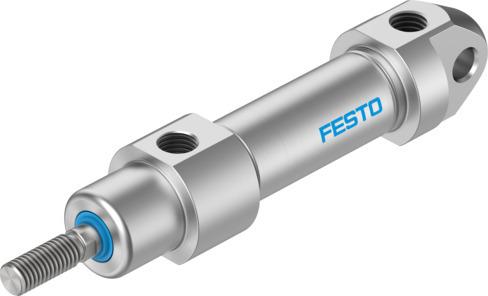

Reference imageConfirm configuration by manufacturer part number.
Festo
8073974
ISO cylinder CRDSNU-B-20-125-PPS-A-MG-A1
Festo ISO cylinder CRDSNU-B-20-125-PPS-A-MG-A1, part number 8073974, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8073974
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8073974.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Stroke
- 125 mm
- Piston diameter
- 20 mm
- Based on norm
- ISO 6432
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- 0 °C...80 °C
- Theoretical force at 6 bar, retracting
- 158 N
- Theoretical force at 6 bar, advancing
- 188 N
- Moving mass at 0 mm stroke
- 42.1 g
- Additional moving mass per 10 mm stroke
- 3.9 g
- Basic weight with 0 mm stroke
- 310 g
- Additional weight per 10 mm stroke
- 7.2 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Cover material
- high-alloy stainless steel
- Piston rod material
- high-alloy stainless steel
- Material of cylinder barrel
- high-alloy stainless steel
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8073974. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
