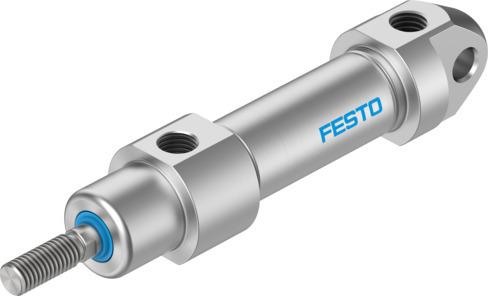

Reference imageConfirm configuration by manufacturer part number.
Festo
8073976
ISO cylinder CRDSNU-B-20-80-PPS-A-MG-A1
The Festo 8073976 is an ISO 6432 double-acting industrial component featuring a 20 mm piston diameter and an 80 mm stroke, operating within a pressure range of 1 bar to 10 bar (0.1 MPa to 1 MPa). This unit incorporates self-adjusting pneumatic end-position cushioning, position sensing via proximity switch, and a structural design comprising a piston, piston rod, and cylinder barrel for operation in any mounting position using compressed air as per ISO 8573-1:2010 [7:4:4]. Constructed with a corrosion resistance class of CRC 4 for particularly high corrosion stress and VDMA24364-B2-L LABS conformity, it delivers a theoretical force of 158 N retracting and 188 N advancing at 6 bar, with a basic weight of 310 g at 0 mm stroke. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8073976
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8073976.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 80 mm
- Piston diameter
- 20 mm
- Based on norm
- ISO 6432
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 4 - Particularly high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- 0 °C...80 °C
- Theoretical force at 6 bar, retracting
- 158 N
- Theoretical force at 6 bar, advancing
- 188 N
- Moving mass at 0 mm stroke
- 42.1 g
- Additional moving mass per 10 mm stroke
- 3.9 g
- Basic weight with 0 mm stroke
- 310 g
- Additional weight per 10 mm stroke
- 7.2 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Cover material
- high-alloy stainless steel
- Piston rod material
- high-alloy stainless steel
- Material of cylinder barrel
- high-alloy stainless steel
