Festo
8074666

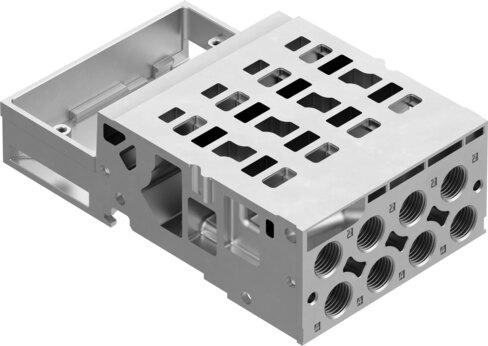

Sub-base VMPA14-FB-AP-4-1
The Festo 8074666 is an industrial component featuring a die-cast aluminum sub-base with a width of 65.5 mm, a length of 107.3 mm, width dimensions of 14.8 mm and 14.9 mm, and a product weight of 250 g. This model accommodates a maximum of 4 valve positions and is equipped with G1/8 pneumatic connections 2 and 4, operating within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar). It features an ambient temperature rating of -5 °C to 50 °C, a corrosion resistance class (CRC) of 0 for no corrosion stress, VDMA24364-B1/B2-L LABS conformity, and RoHS compliant materials. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8074666
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8074666.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 65.5 mm
- Length
- 107.3 mm
- Width dimension
- 14.8 mm | 14.9 mm
- Max. no. of valve positions
- 4
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 250 g
- Pneumatic connection 2
- G1/8
- Pneumatic connection 4
- G1/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8074666. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
