Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

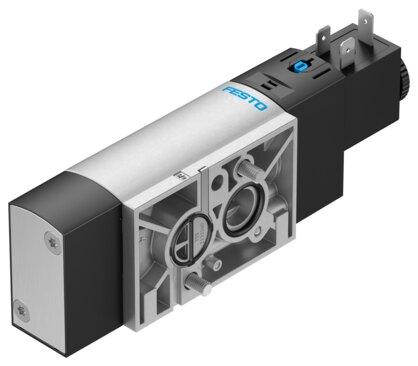

Reference imageConfirm configuration by manufacturer part number.
Festo
8074945
Air solenoid valve VSNC-FC-M52-MD-G14-F8-1A1
The Festo 8074945 is a 32 mm wide electrically actuated industrial component featuring a switchable 5/2- or 3/2-way valve function and a piston gate valve structural design with a soft sealing principle. This piloted component provides a normal nominal flow rate of 1250 l/min according to DIN 1343, an operating pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar), and internal pilot air supply with an adjustable exhaust air function. It features a NAMUR connection pattern conforming to VDI/VDE 3845 standards, mechanical spring reset, detenting and non-detenting manual override, and 24V DC operating voltage with IP65 and IP67 protection ratings when utilizing a plug socket. Additional certifications include c UL us recognition and DNVGL-TAA000011J issuance, supporting mounting in any position with non-reversible flow direction. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8074945
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8074945.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2- or 3/2-way, switchable
- Actuation type
- Electrical
- Width
- 32 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1250 l/min
- Pneumatic working port
- NAMUR connection pattern
- Operating voltage
- 24V DC
- Operating pressure
- 0.25 MPa...1 MPa | 2.5 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- DNVGL-TAA000011J
- Degree of protection
- IP65 | IP67 | With plug socket | As per IEC 60529
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- VDI/VDE 3845 (NAMUR)
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- With accessories
- b-value
- 0.4
- C value
- 5.2 l/sbar
- Standard nominal ow rate, exhaust air return 4->3
- 110 l/min
- Switching time off
- 48 ms
- On switching time
- 11 ms
- Duty cycle
- 100%
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8074945. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
