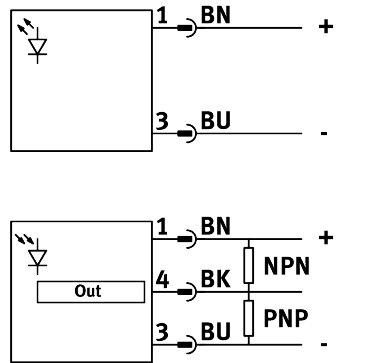

Reference imageConfirm configuration by manufacturer part number.
Festo
8075656
Light barrier SOOD-TB-R-PN
The Festo 8075656 is an optoelectronic industrial component featuring a block design utilizing through-beam sensor detection via a red LED transmitter and receiver. It operates within a 0 mm to 2000 mm working range, incorporates a push-pull switching output with pulsed short-circuit protection, and functions on a 10 V to 30 V DC operating voltage range at an 800 Hz max switching frequency in ambient temperatures from -25 °C to 60 °C. Conforming to EN 60947-5-2 with RCM, c UL us, CE, and UKCA compliance along with RoHS material status, this unit delivers a 150 mm max light spot at 2000 mm. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8075656
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8075656.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Block design
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Certicate issuing authority
- UL E232949
- Note on materials
- RoHS compliant
- Measuring principle
- Optoelectronic
- Detection method
- Through-beam sensor | Transmitter | Receiver
- Type of light
- Red | LED
- Max. light spot
- 150 mm at 2000 mm
- Working range
- 0 mm...2000 mm
- Ambient temperature
- -25 °C...60 °C
- Switching output
- Push-pull
- Switching element function
- PNP, dark-switching | NPN, light-switching
- Max. switching frequency
- 800 Hz
- Max. output current
- 50 mA
- Voltage drop
- 0 V...1.5 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- 10%
- Idle current
- 11 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Cable with plug
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8075656. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
