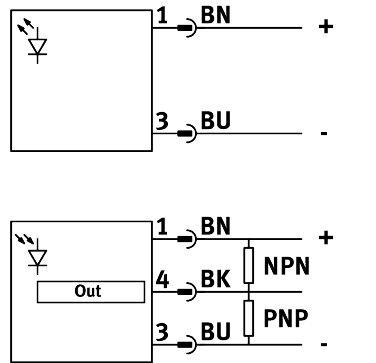

Reference imageConfirm configuration by manufacturer part number.
Festo
8075661
Light barrier SOOD-TB-L-PN
The Festo 8075661 is an optoelectronic industrial component featuring a block design with a through-beam sensor configuration comprised of a transmitter and receiver. It utilizes red laser light with a maximum light spot of 20 mm at 10000 mm, operating across a working range of 0 mm to 10000 mm and an ambient temperature range of -20 °C to 60 °C. Conforming to EN 60947-5-2 with push-pull switching output and a maximum switching frequency of 2000 Hz, this unit operates on a DC voltage range of 10 V to 30 V and includes pulsed short-circuit protection. Certifications and markings include the RCM compliance mark, c UL us recognition (OL), UL certificate E232949, CE marking for EMC and RoHS directives, UKCA markings, and RoHS material compliance. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8075661
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8075661.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Block design
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Certicate issuing authority
- UL E232949
- Note on materials
- RoHS compliant
- Measuring principle
- Optoelectronic
- Detection method
- Through-beam sensor | Transmitter | Receiver
- Type of light
- Laser | Red
- Max. light spot
- 20 mm at 10000 mm
- Working range
- 0 mm...10000 mm
- Ambient temperature
- -20 °C...60 °C
- Switching output
- Push-pull
- Switching element function
- PNP, dark-switching | NPN, light-switching
- Max. switching frequency
- 2000 Hz
- Max. output current
- 50 mA
- Voltage drop
- 0 V...1.5 V
- Short-circuit protection
- Pulsed
- DC operating voltage range
- 10 V...30 V
- Residual ripple
- 10%
- Idle current
- 11 mA
- Reverse polarity protection
- for all electrical connections
- Electrical connection 1, connection type
- Cable with plug
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
