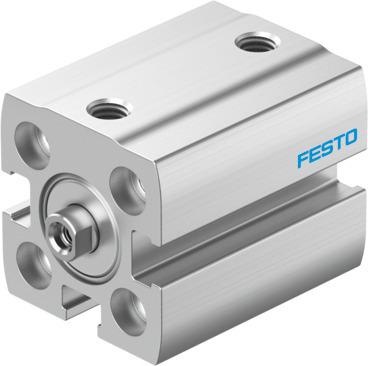

Name: Festo 8076414 Compact cylinder ADN-S-12-20-I-P-A
Brand: Festo

Compact cylinder ADN-S-12-20-I-P-A

The Festo 8076414 is a double-acting industrial component featuring a 12 mm piston diameter and a 20 mm stroke with a piston rod at one end and an internal thread on the rod end. This model operates within a pressure range of 1 to 10 bar utilizing compressed air per ISO 8573-1:2010 [7:4:4], and includes elastic cushioning rings at both ends for end-position impact energy management of 0.07 J. The unit delivers a theoretical advancing force of 68 N and a retracting force of 51 N at 6 bar, with position sensing enabled via proximity switch and an ambient temperature operating range of 0 °C to 80 °C. Submit the exact part number, quantity, and application requirements to receive an official quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8076414
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8076414.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 20 mm
Piston diameter: 12 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Piston rod end: Internal thread
Structural design: Piston | Piston rod
Position sensing: Via proximity switch
Variants: Piston rod at one end
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1
Ambient temperature: 0 °C...80 °C
Impact energy in the end positions: 0.07 J
Theoretical force at 6 bar, retracting: 51 N
Theoretical force at 6 bar, advancing: 68 N
Moving mass at 0 mm stroke: 6 g
Additional moving mass per 10 mm stroke: 2 g
Basic weight with 0 mm stroke: 33 g
Additional weight per 10 mm stroke: 15 g
Type of mounting: Alternatively: | With through-hole | With internal thread | With accessories
Pneumatic connection: M5
Note on materials: RoHS compliant
Cover material: Wrought aluminum alloy, anodized
Material of dynamic seals: NBR

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8076414. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
