Festo
8078240
Connecting cable NEBA-M12G5-U-5-N-LE4
The Festo 8078240 is an industrial connecting cable designed to link field devices such as sensors and actuators with controllers. This component features a straight M12x1 A-coded socket on the field device side with 5 pins, 4 occupied wires, and a screw-type lock with hexagon AF13 and vertical knurling. Certified by c UL us-Listed (OL) under file UL E253748, it conforms to EN 61076-2-101 and EN 61984 standards, supports ATEX Zone 2 and Zone 22 explosion protection, and meets IEC 61010-1 and 61010-2-202 requirements for Festo electrically operated valves with a maximum current of 4 A and 30 VDC open circuit voltage. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8078240
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8078240.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 61076-2-101 | EN 61984
- Certication
- c UL us - Listed (OL)
- Intended use
- The connecting cable connects eld devices (sensors, actuators) with | controllers.
- Explosion prevention and protection
- Observe the information on the certicate | Zone 2 (ATEX) | Zone 22 (ATEX)
- Certicate issuing authority
- UL E253748
- Cable designation
- Without label holder
- Contact durability
- 100
- Product weight
- 134 g
- Application note
- Meets the requirements of IEC 61010-1 and 61010-2-202, in particular | for electrically operated valves from Festo. | Only energy-limited circuits with a maximum current of 4 A at a max. | open circuit voltage of 30 VDC are permitted to be used for supplying | electrically actuated valves from Festo.
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock with hexagon AF13 and vertical knurling | Rotatable | Compatible with rotatable/non-rotatable screw-type lock

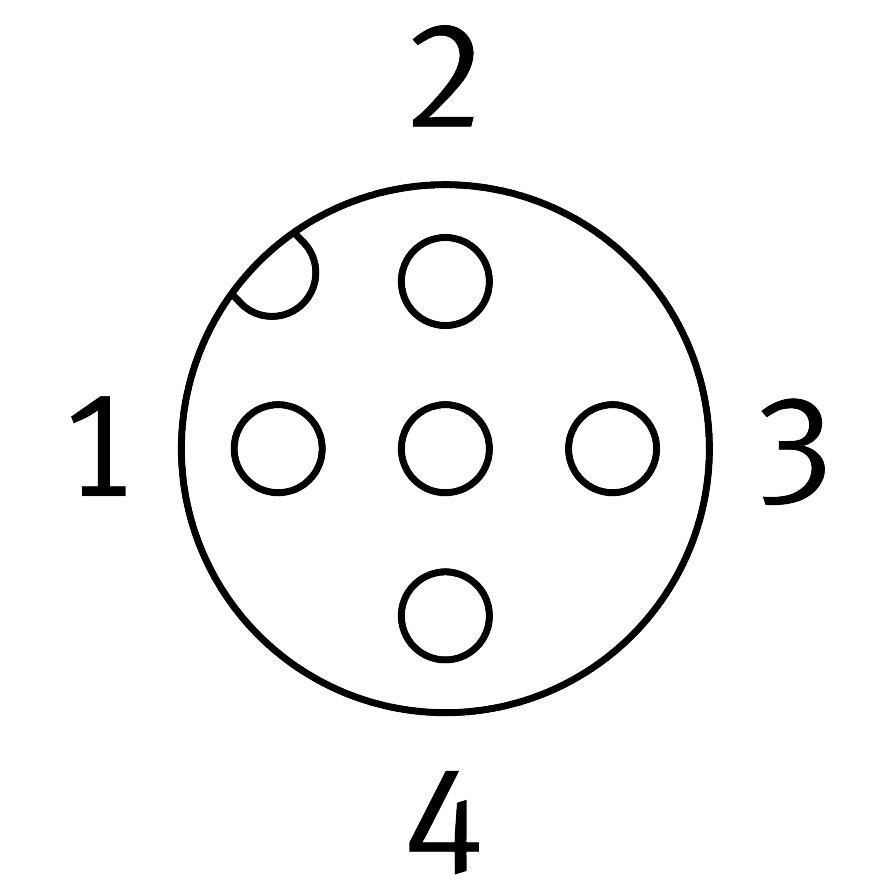

- Electrical connection 1, terminal allocation
- Pin 1 = BN | Pin 2 = WH | Pin 3 = BU | Pin 4 = BK
- Electrical connection 1, display
- None
- Electrical connection 2, function
- Control side
