Name: Festo 8078246 Connecting cable NEBA-M12W5-U-5-N-LE3
Brand: Festo

Connecting cable NEBA-M12W5-U-5-N-LE3

The Festo part number 8078246 is an industrial connecting cable designed to link field devices such as sensors and actuators with controllers, featuring an angled M12x1 A-coded 5-pin socket on the field device side with 3 occupied pins and a screw-type lock with hexagon AF13. Weighing 103 g, this component conforms to EN 61076-2-101 and EN 61984 standards, carries c UL us - Listed (OL) certification via UL E253748, and complies with ATEX Zone 2 and Zone 22 explosion prevention requirements while meeting IEC 61010-1 and 61010-2-202 application notes for Festo electrically operated valves. Submit your exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8078246
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8078246.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Conforms to standard: EN 61076-2-101 | EN 61984
Certication: c UL us - Listed (OL)
Intended use: The connecting cable connects eld devices (sensors, actuators) with | controllers.
Explosion prevention and protection: Observe the information on the certicate | Zone 2 (ATEX) | Zone 22 (ATEX)
Certicate issuing authority: UL E253748
Cable designation: Without label holder
Contact durability: 100
Product weight: 103 g
Application note: Meets the requirements of IEC 61010-1 and 61010-2-202, in particular | for electrically operated valves from Festo. | Only energy-limited circuits with a maximum current of 4 A at a max. | open circuit voltage of 30 VDC are permitted to be used for supplying | electrically actuated valves from Festo.
Electrical connection 1, function: Field device side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled
Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 5
Electrical connection 1, occupied pins/wires: 3
Electrical connection 1, type of mounting: Screw-type lock with hexagon AF13 and vertical knurling | Rotatable | Compatible with rotatable/non-rotatable screw-type lock

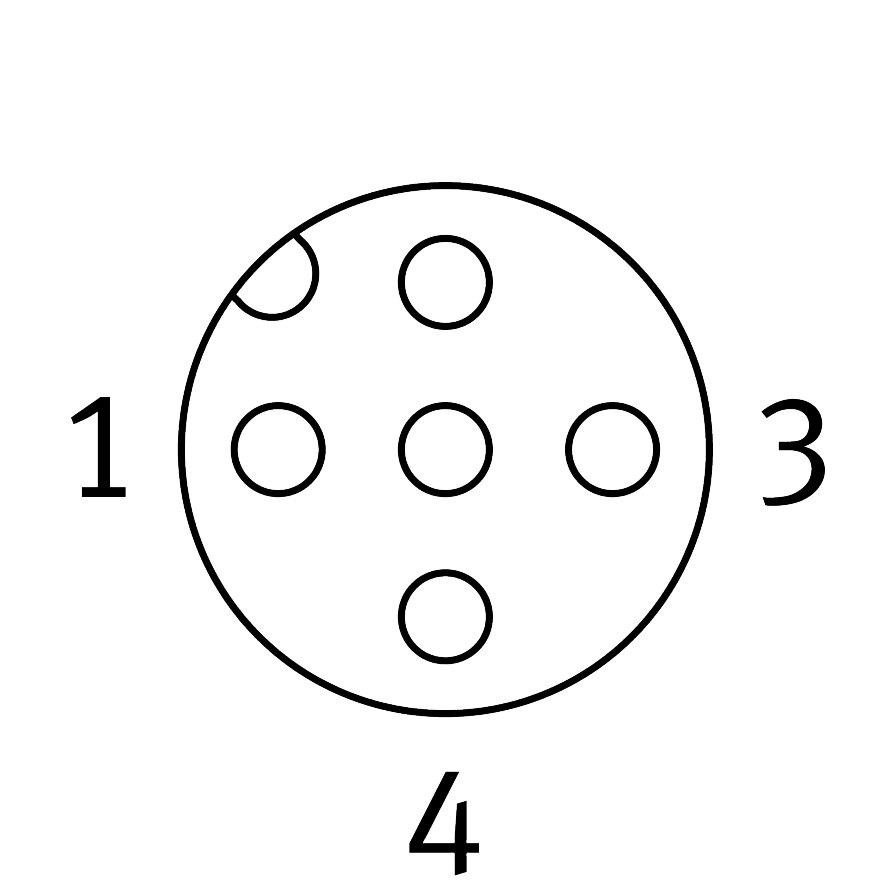

Electrical connection 1, terminal allocation: Pin 1 = BN | Pin 3 = BU | Pin 4 = BK
Electrical connection 1, display: None
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
