8078257

Name: Festo 8078257 Connecting cable NEBA-M12W5P-U-5-N-LE3
Brand: Festo

Connecting cable NEBA-M12W5P-U-5-N-LE3

The Festo 8078257 is an industrial connecting cable designed to link field devices such as sensors and actuators to controllers. This 103 g component features an angled M12x1 A-coded 5-pin socket on the field device side with a screw-type lock, green status LED, and yellow PNP N/O switching status LED, paired with a cable connection on the control side. Conforming to EN 61076-2-101 and EN 61984 standards with c UL us - Listed (OL) certification (UL E253748), the unit meets IEC 61010-1 and 61010-2-202 requirements for supplying Festo electrically operated valves using energy-limited circuits up to 4 A and 30 VDC. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8078257
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8078257.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Conforms to standard: EN 61076-2-101 | EN 61984
Certication: c UL us - Listed (OL)
Intended use: The connecting cable connects eld devices (sensors, actuators) with | controllers.
Certicate issuing authority: UL E253748
Cable designation: Without label holder
Contact durability: 100
Product weight: 103 g
Application note: Meets the requirements of IEC 61010-1 and 61010-2-202, in particular | for electrically operated valves from Festo. | Only energy-limited circuits with a maximum current of 4 A at a max. | open circuit voltage of 30 VDC are permitted to be used for supplying | electrically actuated valves from Festo.
Electrical connection 1, function: Field device side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Angled
Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 5
Electrical connection 1, occupied pins/wires: 3
Electrical connection 1, type of mounting: Screw-type lock with hexagon AF13 and vertical knurling | Rotatable | Compatible with rotatable/non-rotatable screw-type lock

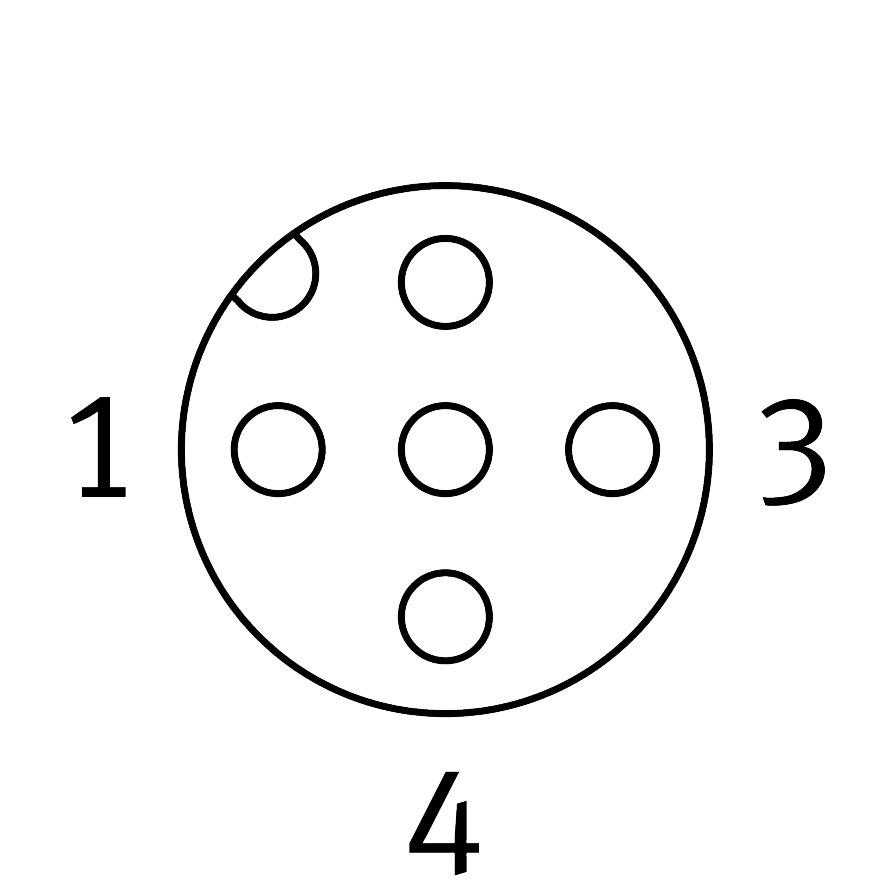

Electrical connection 1, terminal allocation: Pin 1 = BN | Pin 3 = BU | Pin 4 = BK
Electrical connection 1, display: Status indicator LED green | Switching status indication, yellow LED for PNP N/O contact
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: Open end
Electrical connection 2, number of pins/wires: 3

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8078257. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
