8078269

Name: Festo 8078269 Connecting cable NEBA-LE5-U-5-N-M12G5
Brand: Festo

Connecting cable NEBA-LE5-U-5-N-M12G5

The Festo part number 8078269 is an industrial connecting cable designed to link field devices such as sensors and actuators to controllers, weighing 144 g and featuring a contact durability of 100. This component conforms to EN 61076-2-101 and EN 61984 standards, carries c UL us - Listed (OL) certification via authority UL E253748, and is rated for ATEX Zone 2 and Zone 22 explosion prevention and protection when observing certificate information. Electrical connection 1 on the field device side utilizes a 5-pin open end cable with terminal allocation Pin 1 = BN, Pin 2 = WH, Pin 3 = BU, Pin 4 = BK, and Pin 5 = GY, while electrical connection 2 on the control side features a straight, round plug. It meets IEC 61010-1 and 61010-2-202 requirements specifically for Festo electrically operated valves, restricting power supply to energy-limited circuits with a maximum current of 4 A at a max open circuit voltage of 30 VDC. Submit the exact part number, quantity, and application requirements for a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8078269
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8078269.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Conforms to standard: EN 61076-2-101 | EN 61984
Certication: c UL us - Listed (OL)
Intended use: The connecting cable connects eld devices (sensors, actuators) with | controllers.
Explosion prevention and protection: Observe the information on the certicate | Zone 2 (ATEX) | Zone 22 (ATEX)
Certicate issuing authority: UL E253748
Cable designation: Without label holder
Contact durability: 100
Product weight: 144 g
Application note: Meets the requirements of IEC 61010-1 and 61010-2-202, in particular | for electrically operated valves from Festo. | Only energy-limited circuits with a maximum current of 4 A at a max. | open circuit voltage of 30 VDC are permitted to be used for supplying | electrically actuated valves from Festo.
Electrical connection 1, function: Field device side
Electrical connection 1, connection type: Cable
Electrical connection 1, connection technology: Open end
Electrical connection 1, number of pins/wires: 5
Electrical connection 1, occupied pins/wires: 5

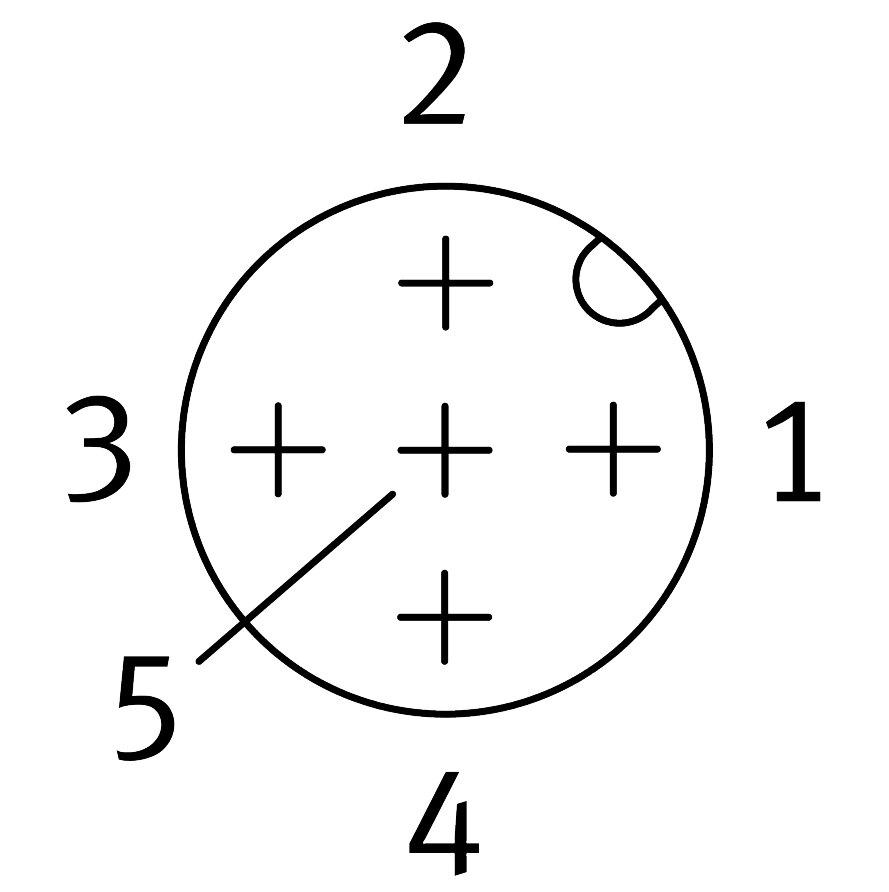

Electrical connection 1, terminal allocation: Pin 1 = BN | Pin 2 = WH | Pin 3 = BU | Pin 4 = BK | Pin 5 = GY
Electrical connection 1, display: None
Electrical connection 2, function: Control side
Electrical connection 2, design: Round
Electrical connection 2, connection type: Plug
Electrical connection 2, cable outlet: Straight
Electrical connection 2, connection technology: M12x1 A-coded as per EN 61076-2-101

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8078269. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
