Name: Festo 8078270 Connecting cable NEBA-LE3-U-2.5-N-M8G3
Brand: Festo

Connecting cable NEBA-LE3-U-2.5-N-M8G3

The Festo part number 8078270 is an industrial connecting cable weighing 50 g that links field devices such as sensors and actuators to controllers. Certified by c UL us - Listed (OL) under UL E253748 and conforming to EN 61076-2-104 and EN 61984, this component features a 3-pin open end on the field device side and a straight round plug on the control side with a contact durability of 100. It meets IEC 61010-1 and 61010-2-202 requirements for electrically operated Festo valves operating on energy-limited circuits up to 4 A and 30 VDC, and supports ATEX Zone 2 and Zone 22 hazardous area applications when observing certificate instructions. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8078270
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8078270.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Conforms to standard: EN 61076-2-104 | EN 61984
Certication: c UL us - Listed (OL)
Intended use: The connecting cable connects eld devices (sensors, actuators) with | controllers.
Explosion prevention and protection: Observe the information on the certicate | Zone 2 (ATEX) | Zone 22 (ATEX)
Certicate issuing authority: UL E253748
Cable designation: Without label holder
Contact durability: 100
Product weight: 50 g
Application note: Meets the requirements of IEC 61010-1 and 61010-2-202, in particular | for electrically operated valves from Festo. | Only energy-limited circuits with a maximum current of 4 A at a max. | open circuit voltage of 30 VDC are permitted to be used for supplying | electrically actuated valves from Festo.
Electrical connection 1, function: Field device side
Electrical connection 1, connection type: Cable
Electrical connection 1, connection technology: Open end
Electrical connection 1, number of pins/wires: 3
Electrical connection 1, occupied pins/wires: 3

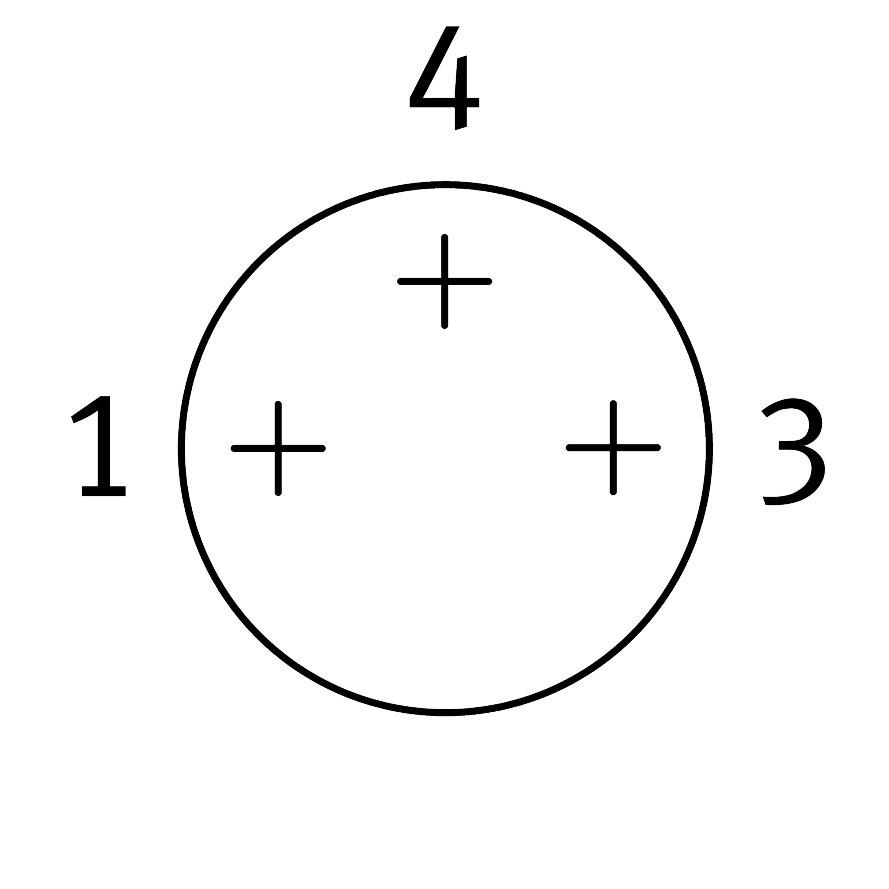

Electrical connection 1, terminal allocation: Pin 1 = BN | Pin 3 = BU | Pin 4 = BK
Electrical connection 1, display: None
Electrical connection 2, function: Control side
Electrical connection 2, design: Round
Electrical connection 2, connection type: Plug
Electrical connection 2, cable outlet: Straight
Electrical connection 2, connection technology: M8x1 A-coded as per EN 61076-2-104
Electrical connection 2, number of pins/wires: 3
