Festo
8078273
Connecting cable NEBA-LE4-U-5-N-M8G4
The Festo part number 8078273 is an industrial connecting cable designed to link field devices such as sensors and actuators with controllers. This component features an open-end 4-pin connection on the field device side and a straight round plug on the control side, with a product weight of 129 g and a contact durability of 100. Certified by c UL us - Listed (OL) under UL E253748, it conforms to EN 61076-2-104 and EN 61984 standards while supporting use in ATEX Zone 2 and Zone 22 hazardous locations. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8078273
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8078273.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 61076-2-104 | EN 61984
- Certication
- c UL us - Listed (OL)
- Intended use
- The connecting cable connects eld devices (sensors, actuators) with | controllers.
- Explosion prevention and protection
- Observe the information on the certicate | Zone 2 (ATEX) | Zone 22 (ATEX)
- Certicate issuing authority
- UL E253748
- Cable designation
- Without label holder
- Contact durability
- 100
- Product weight
- 129 g
- Application note
- Meets the requirements of IEC 61010-1 and 61010-2-202, in particular | for electrically operated valves from Festo. | Only energy-limited circuits with a maximum current of 4 A at a max. | open circuit voltage of 30 VDC are permitted to be used for supplying | electrically actuated valves from Festo.
- Electrical connection 1, function
- Field device side
- Electrical connection 1, connection type
- Cable
- Electrical connection 1, connection technology
- Open end
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, terminal allocation

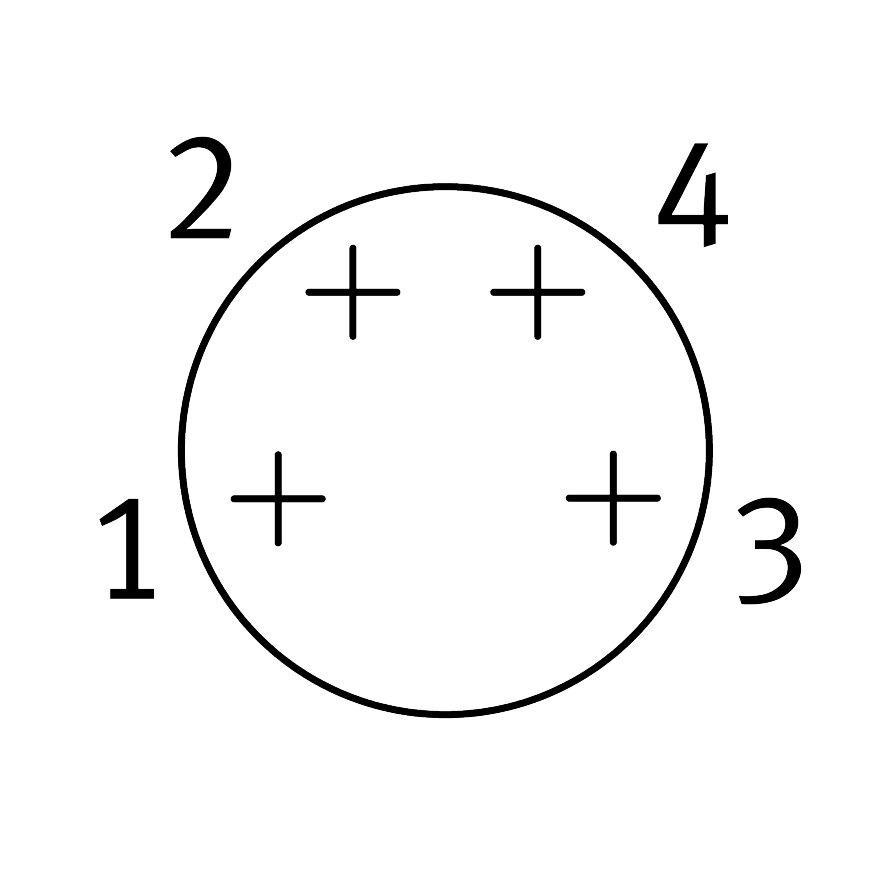

- Pin 1 = BN | Pin 2 = WH | Pin 3 = BU | Pin 4 = BK
- Electrical connection 1, display
- None
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 2, number of pins/wires
- 4
