Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8078279
Connecting cable NEBA-M8G3-U-1-N-M12G3
The Festo 8078279 industrial component is a connecting cable designed to link field devices such as sensors and actuators with controllers. Conforming to standards EN 61076-2-101, EN 61076-2-104, and EN 61984, this 33 g assembly features an M8x1 A-coded straight socket on the field device side with a 3-pin configuration and screw-type lock mounting. It is c UL us-listed and supports use in ATEX Zone 2 and Zone 22 hazardous locations when observing certificate UL E253748 instructions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8078279
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8078279.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 61076-2-101 | EN 61076-2-104 | EN 61984
- Certication
- c UL us - Listed (OL)
- Intended use
- The connecting cable connects eld devices (sensors, actuators) with | controllers.
- Explosion prevention and protection
- Observe the information on the certicate | Zone 2 (ATEX) | Zone 22 (ATEX)
- Certicate issuing authority
- UL E253748
- Cable designation
- Without label holder
- Contact durability
- 100
- Product weight
- 33 g
- Application note
- Meets the requirements of IEC 61010-1 and 61010-2-202, in particular | for electrically operated valves from Festo. | Only energy-limited circuits with a maximum current of 4 A at a max. | open circuit voltage of 30 VDC are permitted to be used for supplying | electrically actuated valves from Festo.
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, occupied pins/wires
- 3
- Electrical connection 1, type of mounting
- Screw-type lock with hexagon AF 9 and longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock

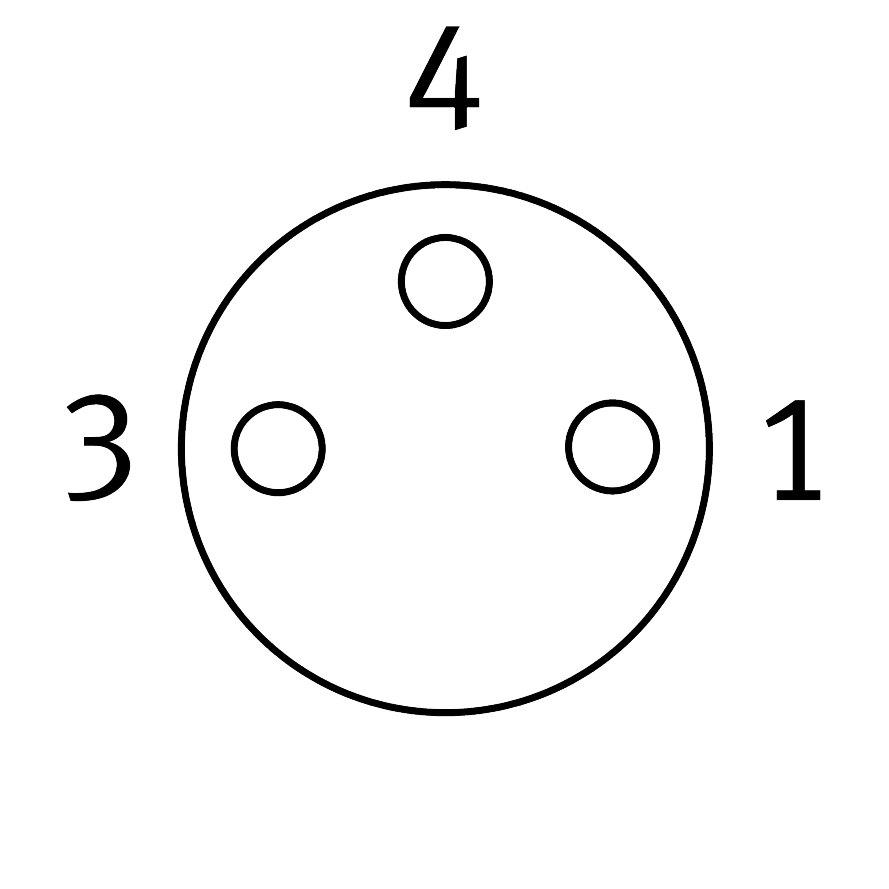

- Electrical connection 1, terminal allocation
- Pin 1 = BN | Pin 3 = BU | Pin 4 = BK
- Electrical connection 1, display
- None
- Electrical connection 2, function
- Control side
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8078279. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
