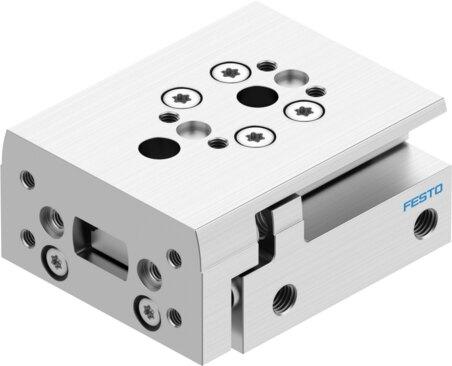

Name: Festo 8078833 Mini slide DGST-8-10-E1A
Brand: Festo

Mini slide DGST-8-10-E1A

The Festo part number 8078833 is a double-acting industrial component featuring an 8 mm piston diameter, a 10 mm stroke, and a recirculating ball bearing guide within a structural design of a double piston, yoke, piston rod, and slide. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a pressure range of 1.5 bar to 8 bar (0.15 MPa to 0.8 MPa), this yoke-drive unit achieves a maximum speed of 0.5 m/s and a repetition accuracy of 0.3 mm or less. Elastomer cushioning at both non-adjustable ends absorbs 0.03 J of impact energy across a 1.5 mm cushioning length while supporting position sensing via proximity switches in ambient temperatures from -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8078833
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8078833.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 10 mm
Piston diameter: 8 mm
Drive unit operating mode: Yoke
Cushioning: Elastomer cushioning, at both ends, stroke not adjustable
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Double piston | Yoke | Piston rod | Slide
Position sensing: Via proximity switch
Operating pressure: 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
Max. speed: 0.5 m/s
Repetition accuracy: <= 0.3 mm
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -10 °C...60 °C
Impact energy in the end positions: 0.03 J
Cushioning length: 1.5 mm
Max. force Fy: 250 N
Max. force Fz: 250 N
Max. torque Mx: 2 Nm
Max. torque My: 2 Nm
Max. torque Mz: 2 Nm
Theoretical force at 6 bar, retracting: 45 N
Theoretical force at 6 bar, advancing: 60 N

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8078833. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
