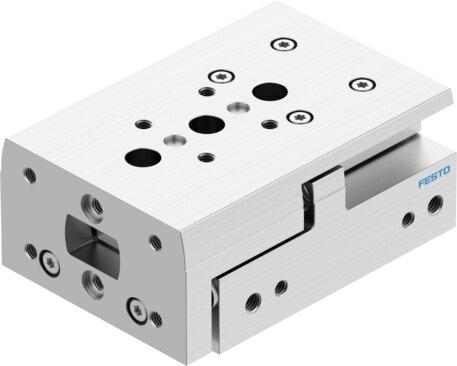

Reference imageConfirm configuration by manufacturer part number.
Festo
8078848
Mini slide DGST-12-30-E1A
The Festo 8078848 is a double-acting industrial component featuring a 30 mm stroke, 12 mm piston diameter, and a yoke drive unit with a recirculating ball bearing guide. Its structural design incorporates a double piston, piston rod, and slide, operating within a pressure range of 0.1 MPa to 0.8 MPa (1 bar to 8 bar) and up to a maximum speed of 0.5 m/s. Position sensing is achieved via a proximity switch, while elastomer cushioning at both non-adjustable ends absorbs an impact energy of 0.07 J across a 1.1 mm cushioning length. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8078848
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8078848.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 30 mm
- Piston diameter
- 12 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastomer cushioning, at both ends, stroke not adjustable
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Double piston | Yoke | Piston rod | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...0.8 MPa | 1 bar...8 bar | 14.5 psi...116 psi
- Max. speed
- 0.5 m/s
- Repetition accuracy
- <= 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.07 J
- Cushioning length
- 1.1 mm
- Max. force Fy
- 540 N
- Max. force Fz
- 540 N
- Max. torque Mx
- 4.2 Nm
- Max. torque My
- 4.2 Nm
- Max. torque Mz
- 4.2 Nm
- Theoretical force at 6 bar, retracting
- 102 N
- Theoretical force at 6 bar, advancing
- 136 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8078848. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
