Festo
8079193

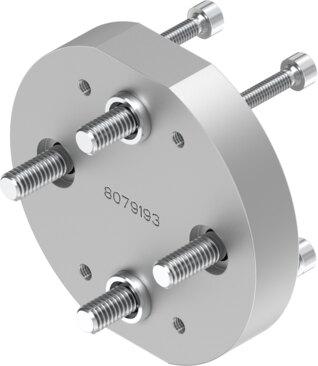

Adapter kit DHAA-G-R3-16-B8-16
The Festo part number 8079193 is a size 16 industrial component weighing 50 g, featuring an anodized wrought aluminum alloy adapter plate and galvanized steel screws. It offers a corrosion resistance class of CRC 2 for moderate corrosion stress, VDMA24364-B2-L LABS conformity, and supports any mounting position via internal threads within an ambient temperature range of 0 °C to 50 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8079193
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8079193.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Mounting position
- Any
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...50 °C
- Product weight
- 50 g
- Type of mounting
- With internal thread
- Adapter plate material
- Wrought aluminum alloy, anodized
- Material of screws
- Galvanized steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8079193. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
