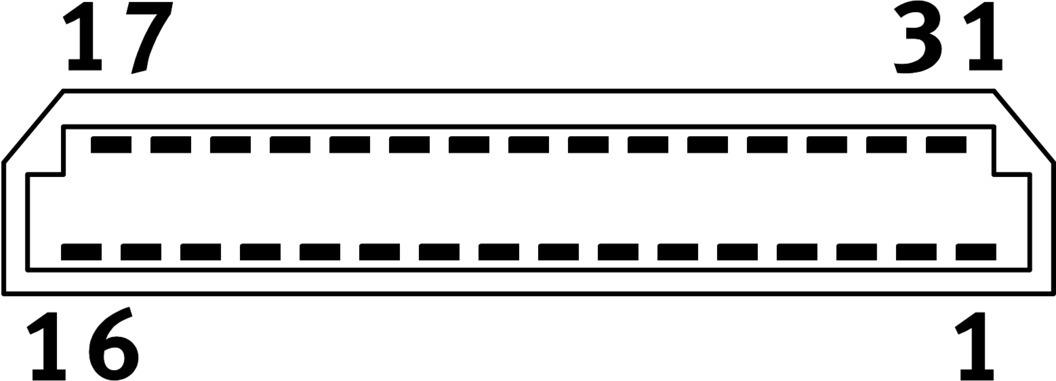

Reference imageConfirm configuration by manufacturer part number.
Festo
8079819
Motor cable NEBM-F1W31-XC-0.5-F1N-DF1W31
The Festo part number 8079819 is an industrial component weighing 27 g, featuring a square socket design on both the field device and control sides with a 90-degree angled cable outlet for each connection. Both electrical connections utilize connection technology pattern F1 with 31 pins and 31 occupied pins, featuring snap-locking mounting and a cable designation without a label holder, alongside a contact durability rating of 30. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8079819
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8079819.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Contact durability
- 30
- Product weight
- 27 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Angled
- Electrical connection 1, information on cable outlet
- 90°
- Electrical connection 1, connection technology
- Connection pattern F1
- Electrical connection 1, number of pins/wires
- 31
- Electrical connection 1, occupied pins/wires
- 31
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Socket
- Electrical connection 2, cable outlet
- Angled
- Electrical connection 2, note on cable outlet
- 90°
- Electrical connection 2, connection technology
- Connection pattern F1
- Electrical connection 2, number of pins/wires
- 31
- Electrical connection 2, occupied pins/wires
- 31
- Electrical connection 2, type of mounting
- Snap-locking
- DC operating voltage range
- 0 V...50 V
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 0.5 A
- Surge resistance
- 0.25 kV
- Cable length
- 0.5 m
- Cable characteristic
- For dynamic applications
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 0 mm
- Information on bending radius, xed cable installation
- Can be bent once
- Bending radius, exible cable installation
- 25 mm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8079819. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
