Name: Festo 8079858 Pinch valve VZQA-C-M22C-6-S1S1-V2V4E-4
Brand: Festo

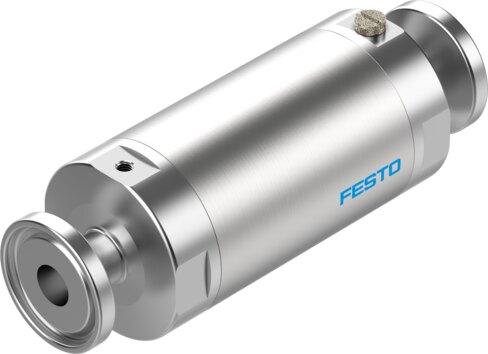

Pinch valve VZQA-C-M22C-6-S1S1-V2V4E-4

The Festo 8079858 is a pneumatically operated, soft-sealing pinch valve featuring a 2/2-way closed, monostable function with a nominal width DN of 6 and reversible flow direction. Configured for in-line installation with ASME-BPE Type A clamp fittings, this externally controlled component operates within a medium pressure range of 0 MPa to 0.4 MPa and an operating pressure of 0.35 MPa to 0.6 MPa, utilizing a mechanical spring for reset. It accommodates compressed air and water with a maximum viscosity of 4000 mm²/s, featuring an M3 auxiliary pilot air port 12 and supporting vacuum usage up to -0.09 MPa at room temperature. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8079858
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8079858.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Structural design: Pinch valve, pneumatically operated
Actuation type: Pneumatic
Sealing principle: Soft
Mounting position: Any
Type of mounting: In-line installation
Fitting connection: Clamp according to ASME-BPE Type A
Nominal width DN: 6
Valve function: 2/2-way, closed, monostable
Flow direction: Reversible
Medium pressure: 0 MPa...0.4 MPa | 0 bar...4 bar | 0 psi...58 psi
Note on the medium pressure: Use in the vacuum range was tested up to -0.09 MPa with the air at | room temperature. Depending on the application, a counter-vacuum | may have to be created on the control side to guarantee the media ow.
Operating pressure: 0.35 MPa...0.6 MPa | 3.5 bar...6 bar | 50.75 psi...87 psi
Nominal pressure of tting PN: 10
Burst pressure: 1.6 MPa | 16 bar | 232 psi
Reset method: Mechanical spring
Type of control: Externally controlled
Auxiliary pilot air port 12: M3
Pilot medium: Compressed air as per ISO 8573-1:2010 [7:4:1]
Medium: Compressed air as per ISO 8573-1:2010 [-:-:1] | Water
Max. viscosity: 4000 mm²/s

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8079858. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
