Festo
8079933

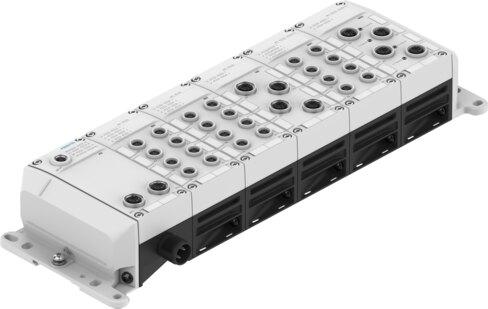

Remote I/O system CPX-AP-A
Festo Remote I/O system CPX-AP-A, part number 8079933, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8079933
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8079933.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Electrical actuation
- AP interface | Ethernet
- Width dimension
- 50.1 mm
- Type of mounting
- Direct mounting via through-hole | On H-rail with accessories | On mounting frame | Screwed on | with through-hole for M5 screw with accessories | with through-hole for M6 screw with accessories | with through-hole for M5 screw | with through-hole for M6 screw
- Product weight
- 450 g...5200 g
- Mounting position
- Arbitrary, on H-rail: horizontal
- Ambient temperature
- -20 °C...50 °C
- Note on ambient temperature
- Observe derating according to user documentation | Observe ambient temperature derating according to IEC 61131-2:2017
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 5 - 95% | Non-condensating
- Max. installation height
- 3500 m
- Information on max. installation height
- > 2000 m ASL (< 79.5 kPa) | Observe derating according to user documentation | Observe ambient temperature derating according to IEC 61131-2:2017
- Degree of protection
- IP65 | IP67
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Note on vibration resistance
- SG1 for DIN rail | SG2 on direct mounting | Transport application test with severity level 1 as per FN 942017-4 and | EN 60068-2-6
- Overvoltage category
- II
- LABS (PWIS) conformity
- VDMA24364-B2-L
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- Note on materials
- RoHS compliant
Technical library
Documents and Data Sheets
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8079933. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
