Festo
8080585

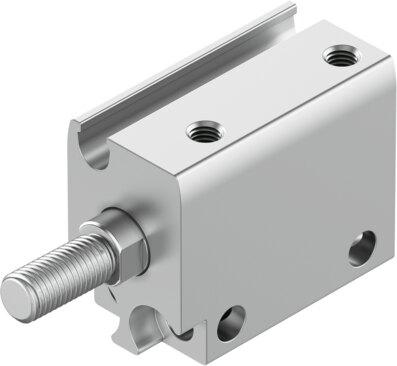

Compact cylinder AEN-S-10-10-A-A
The Festo 8080585 is an industrial component featuring a 10 mm piston diameter, a 10 mm stroke, and a single-end piston rod with an external thread designed for pushing operations. Operating within a pressure range of 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], this un-cushioned unit delivers a theoretical advancing force of 41.7 N and a retracting force of 5.3 N at 6 bar. It incorporates position sensing via a proximity switch, a moving mass of 5.7 g, a total product weight of 19 g, and a moderate corrosion resistance class (CRC) of 2 for ambient temperatures between -10 °C and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8080585
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8080585.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 10 mm
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Pushing
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.012 J
- Theoretical force at 6 bar, retracting
- 5.3 N
- Theoretical force at 6 bar, advancing
- 41.7 N
- Moving mass
- 5.7 g
- Product weight
- 19 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M3
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- NBR | TPE-U(PU)
- Housing material
- Wrought aluminum alloy | Anodized
- Piston rod material
- high-alloy stainless steel
