Festo
8080586

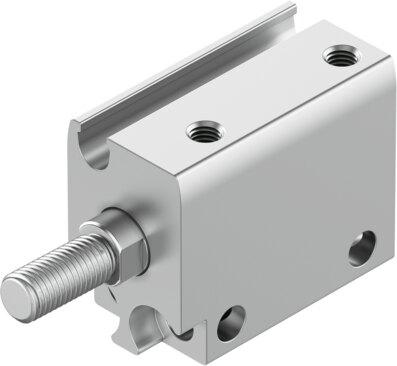

Compact cylinder AEN-S-10-10-A
The Festo 8080586 is an industrial component featuring a 10 mm piston diameter and a 10 mm stroke, operating via a pushing mode with a single-end piston rod and external thread. It functions within an operating pressure range of 0.15 MPa to 0.8 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4], supporting oil-lubricated operation and offering a CRC rating of 2 for moderate corrosion stress. Weighing 19 g with a moving mass of 5.3 g, the unit provides a theoretical advancing force of 41.7 N and a retracting force of 5.3 N at 6 bar, utilizing through-hole mounting for installation across any position within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8080586
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8080586.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Piston diameter
- 10 mm
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Pushing
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Variants
- Piston rod at one end
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.012 J
- Theoretical force at 6 bar, retracting
- 5.3 N
- Theoretical force at 6 bar, advancing
- 41.7 N
- Moving mass
- 5.3 g
- Product weight
- 19 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M3
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- NBR | TPE-U(PU)
- Housing material
- Wrought aluminum alloy | Anodized
- Piston rod material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8080586. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
